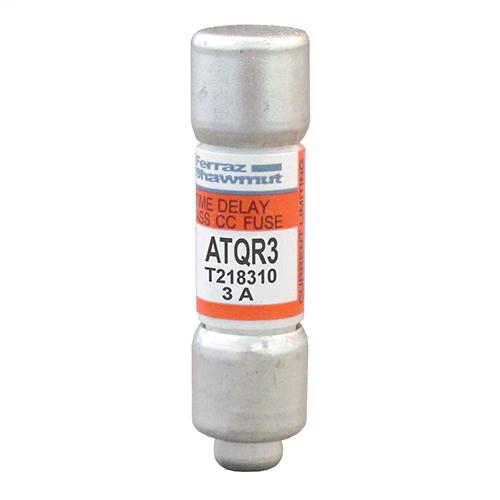

Mersen ATQR3 Class CC / Time-Delay ATQR Fuse - 3amp. Rated 600 volts AC / 300 volts DC

Manufacturer: Mersen | Catalog # ATQR3 | Codale Part # 2370381
$40.29/ea
ea
Log in or register to view your price, purchase history, and more!
36 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems

Technical Information

Amperage
3 Amp
Applications
For Control Transformers, Solenoids, Inductive Loads, Lighting, Heaters, General-Purpose Loads
Frequency
50 Hz
Fuse Class
Class CC
Insulation Material
GMG
Interrupt Rating
200 kAIC
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
Tc Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time-Delay
Voltage
600 VAC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Amp-Trap® 2000

General Product Info

12-Digit UPC
782001906535
Class
CC
Construction
Fiberglass
Product UPC
78200190653
Weight
0.02 lb

Dimensions

Diameter
0.41 Inch
Length
1-1/2 Inch
Applications
  • Control transformers
  • Solenoids
  • Inductive loads
  • Lighting, heating & general-purpose loads
Features
  • Time-delay for control transformer inrush loads without nuisance opening
  • Highly current-limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High visibility orange label ensures instant brand recognition, and simplifies replacement
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching and high current limitation
Approvals & Standards
  • UL listed to standard 248-4 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.4
