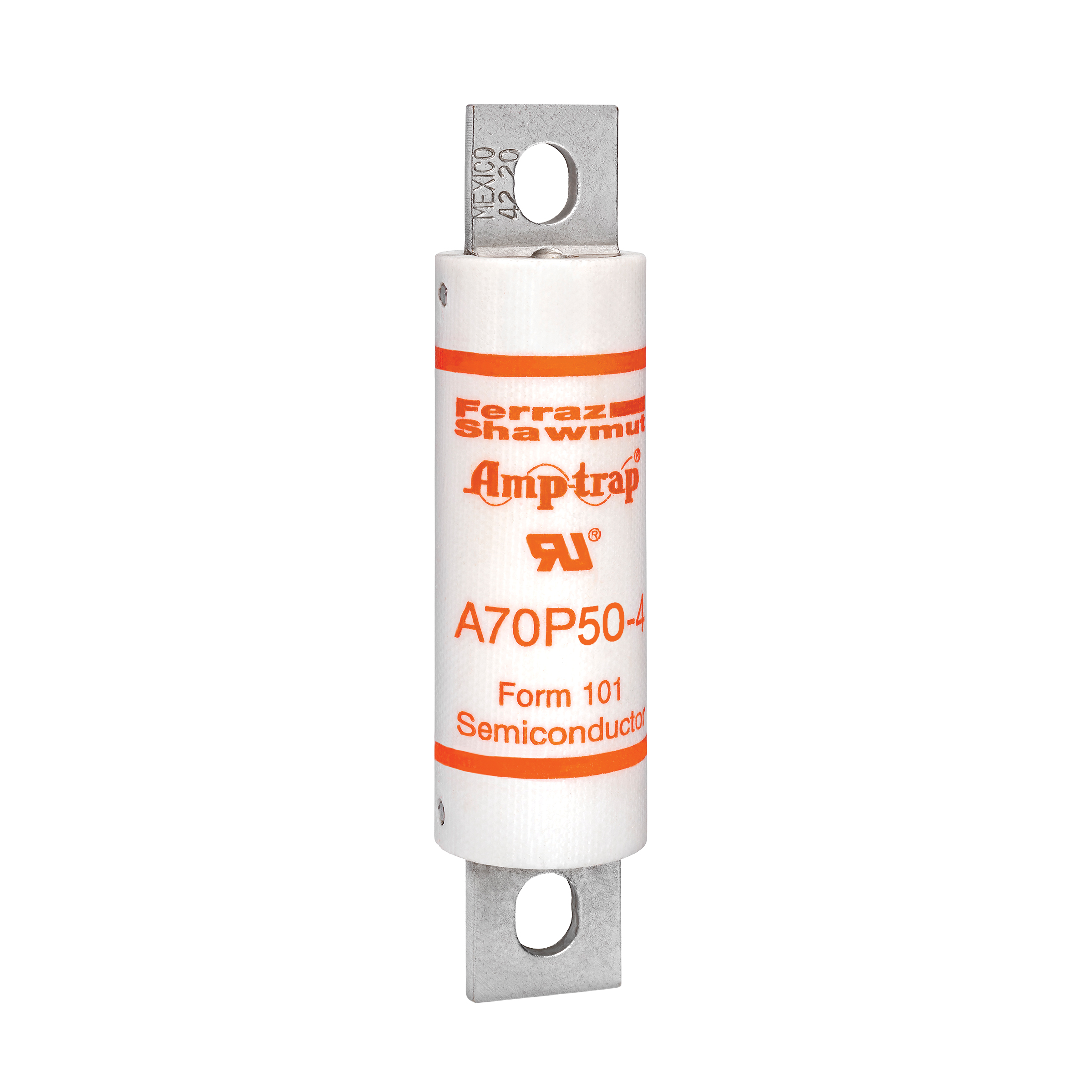

Product image for Mersen A70P50-4 25.4 x 111 mm 50 Amp 700 Volt Semiconductor Protection Fuse
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Mersen A70P50-4 25.4 x 111 mm 50 Amp 700 Volt Semiconductor Protection Fuse

Manufacturer: Mersen | Catalog # A70P50-4 | Codale Part # 2370594
$149.01/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
A70P Amp-Trap® Form 101 high speed fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. A70P is a very popular fuse, available in a wide range of ratings. Typically used for replacement.

Technical Information

Amperage
50 Amp
Applications
For Protection of 700 V or Less DC Drives, UPS, Inverters, Reduced Voltage Starters
Insulation Material
GMG
Interrupt Rating
100 kAIC
Max Operating Temperature
80 degrees C
Mounting Type
Bolt
Rated Voltage AC
700 V
Rated Voltage DC
650 V
Tc Connection
Bolted
Terminal Material
Tin-Plated Brass
Terminal Type
Bolted
Type
Round
Voltage
700 Volt

Packaging

Pkg Qty
5

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001947163
Product UPC
78200194716
Weight
0.27 lb

Dimensions

Diameter
1 Inch
Length
4.38 Inch

Certifications and Compliance

Country of Origin
Mexico
Features
  • Low I2t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types helps in equipment design
Certifications
  • UL recognized component UL File E60314
  • AC: guide no. JFHR2 (10-1000A)
  • DC: tested to UL standard 198L parameters (10-800A)
