Hubbell HBL9309 Black 30A 125V Nylon Heavy-Duty Plug, Angle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL9309 | Codale Part # 24251
$152.69/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Nylon, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 30A 125V, 5-30P, Black, Single Pack.

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Conductor Size
12-6 AWG
Cord Type
Portable
Current
30 Amp
Grounding
Yes
Horsepower
2 hp
Material
Composite
Mounting Type
Surface
NEMA
5-30P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized, Angled, 4 Position
Voltage
125 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585015224
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501522
Weight
0.55 lb

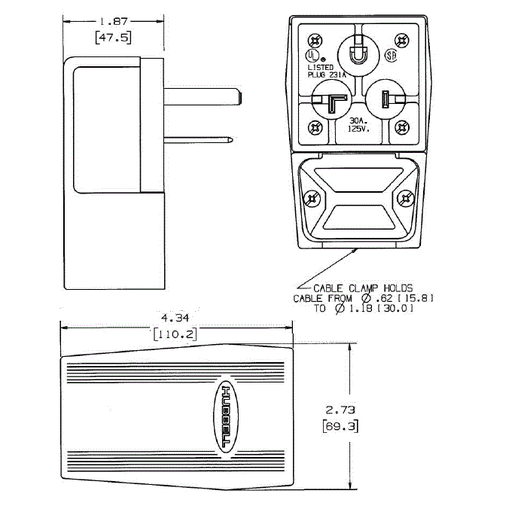

Dimensions

Height
1.88 Inch
Length
4.34 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nylon
  • Heavy Duty
  • Industrial/Commercial Grade
