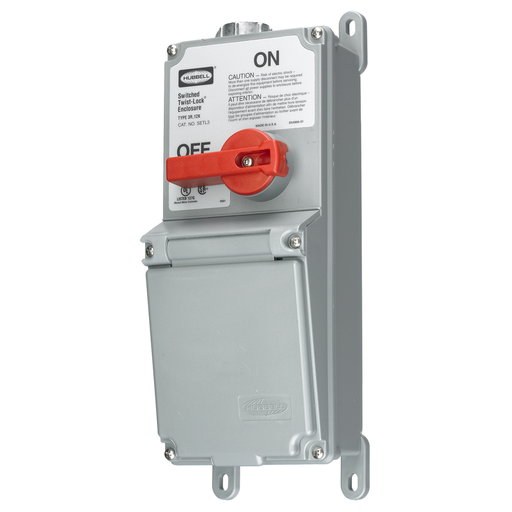

Hubbell SETL3 Switched Enclosure

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SETL3 | Codale Part # 24266
$682.61/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Enclosure, Three Pole, 30A 600V AC Max, Terminal Screws, Gray.

Technical Information

Action
Snap
Actuator
Lever
Amperage
30 Amp
Applications
For Industrial Application
Base Material
PBT
Contact Configuration
Two Position
Contact Rating
30A
Enclosure
Non-Metallic
Load Rating
18000 W
Material
Composite
Mounting Type
Feet
Number of Poles
3 Pole
Operating Cycles
6000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
12K Enclosure Rating,CSA,Type 3R,UL Standard
Style
For 20A And 30A Devices
Temperature Rating
-40 to 67 degrees C without Impact
Type
2 Position, Extra Heavy Duty, Lever, Non-Metallic
Voltage
600 VAC
Wattage
18 kW

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585006055
Color
Gray
Environmental Conditions
NEMA 4X
Housing Material
Composite
Product UPC
78358500605
Weight
3.8 lb

Dimensions

Height
4-1/2 Inch
Length
11.38 Inch
Width
4.88 in

Certifications and Compliance

Country of Origin
Poland
Features

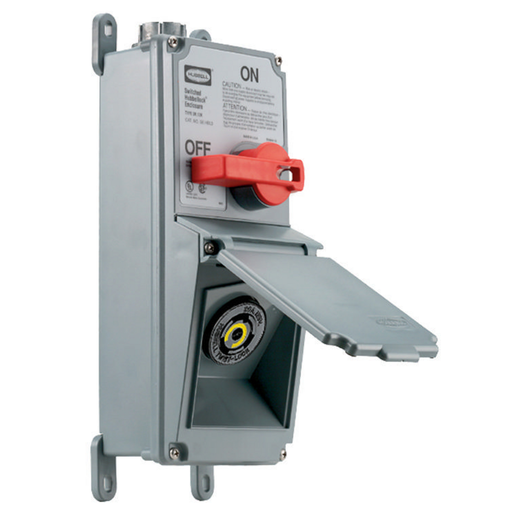

  • Accommodates 20- or 30-Amp Twist-Lock® Receptacle
  • Type 3R Rainproof or 12K Dust-tight
  • Molded Valox Resists Abuse, Corrosion and Enhances Safety
  • Lockable Handle Meets OSHA Lockout Requirements
