Hubbell HBL9462C 60 Amp 125/250 Volt 3-Pole 4-Wire NEMA 14-60P Black Nylon Straight Blade Angle Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL9462C | Codale Part # 24276
$406.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Nylon, 4-Position, Heavy Duty, Industrial/Commercial Grade, Angled, 3-Pole 4-Wire Grounding, 60A 125/250V, 14-60P, Black, Single Pack.

Technical Information

Amperage
60 Amp
Applications
For Industrial, Commercial
Conductor Size
12-4 AWG
Cord Type
All Portable
Current
60 Amp
Grounding
Grounding
Material
Nylon
Mounting Type
Cord
NEMA
14-60P
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2,CSA,Guide RTRT Fed Spec WC596G,Meets WD-6,No. 42 File 285,UL,UL 498 File E2186
Tc Connection
Terminal Screws
Type
Non-Reversing
Voltage
250 Volt
Wattage
15k Watt
Wire Count
4
Wire Size
12-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585015361
Color
Black
Product UPC
78358501536
Weight
0.6 lb

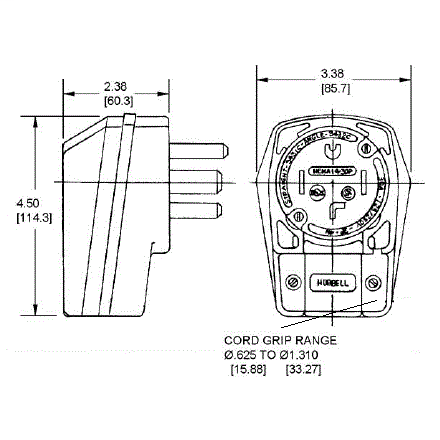

Dimensions

Height
2.37 Inch
Length
3.28 Inch
Width
1.81 in

Certifications and Compliance

Country of Origin
USA
Features
  • 60A
  • 125/250V
  • 3 Pole
  • 4 Wire Grounding
