Hubbell HBL8452C 50 Amp 250 Volt 3-Pole 4-Wire NEMA 15-50P Black Straight Blade Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8452C | Codale Part # 24278
$190.61/ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Plug,Industrial Grade, 3-Pole 4-Wire Grounding, 50A 3 Phase 250V AC, 15-50P, Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
Portable
Current
50 Amp
Grounding
Yes
Material
Composite
Mounting Type
Cord
NEMA
15-50P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Size
Standard Sized
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized, Angled, 4 Position
Voltage
250 Volt
Wattage
12500 Watt
Wire Count
4
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585015170
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501517
Weight
0.85 lb

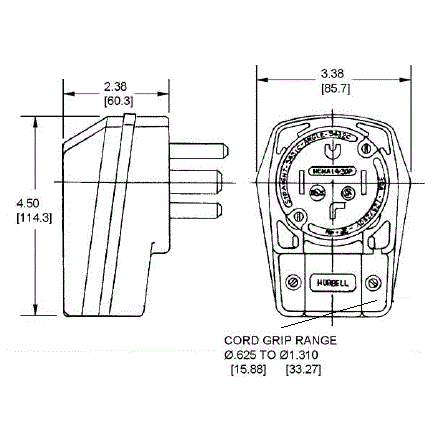

Dimensions

Height
3.418 Inch
Length
5.168 Inch
Width
3.4 in

Certifications and Compliance

Country of Origin
USA
Features
  • Gripping ribs provide secure gripping area
  • Supertough nylon housing
  • Catalog number, ratings and certifications molded in face
