Hubbell SE2730A 30 Amp 480 Volt NEMA L16-30R Switched Enclosure with Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SE2730A | Codale Part # 24287
$793.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Twist-Lock Enclosure With pre-wired HBL2730 Receptacle, 30A Twist-Lock®, 3 Phase 480 V AC, NEMA L16-30R, Terminal Screws, Gray.

Technical Information

Action
Snap
Actuator
Lever
Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Base Material
PBT
Contact Configuration
Two Position
Contact Rating
30A
Enclosure
Non-Metallic
Horsepower
10 hp
Material
Composite
NEMA
L16-30R
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Cycles
6k
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
12K Enclosure Rating,CSA,Type 3R,UL Standard
Temperature Rating
67 degrees C Maximum Continuous, -40 degrees C Minimum without Impact
Type
Standard, 2-Position, Lever
Voltage
480 Volt
Wattage
14400 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585006352
Color
Gray
Environmental Conditions
NEMA 4X
Product UPC
78358500635
Weight
4 lb

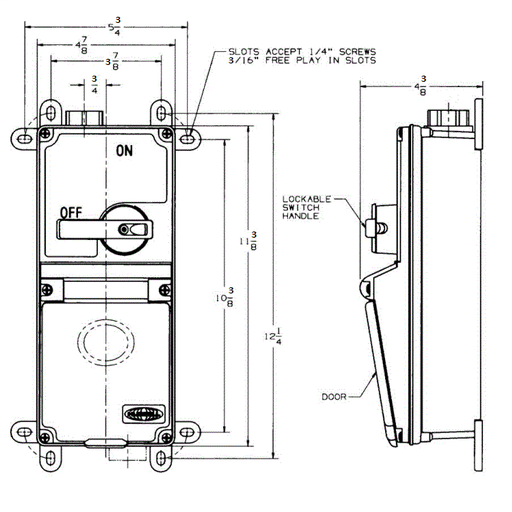

Dimensions

Height
4.38 Inch
Length
11.38 Inch
Width
4.88 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Lockable handle provides lockout protection for greater safety and complies with OSHA lockout requirements
  • Horsepower rated switch
  • Large receptacle gasketless door and hinge assembly
  • Heavy-duty internal frame bonds conduit and all grounds and has a DIN rail to accommodate the switch
