Hubbell HBL26418 60 Amp 600 Volt 3-Pole 4-Wire Yellow Locking Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL26418 | Codale Part # 24328
$2,160.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Female Connector Body, 60A 600V, 3-Pole 4-Wire Grounding, Black phenolic interior, Non NEMA, Screw Terminal, Yellow thermoplastic sleeve over steel housing

Technical Information

Amperage
60 Amp
Applications
Heavy Duty Industrial
Conductor Size
6 AWG
Connection Type
Pressure Screw Terminal
Current
60 Amp
Material
Composite
Number of Conductors
4
Number of Poles
3-3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No. 42,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
75 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without impact, -25 degrees C with Impact
Type
Standard, Insulated, Straight, Female, 3-Pole
Voltage
600 Volt
Wire Count
4
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017310
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358501731
Weight
2.45 lb

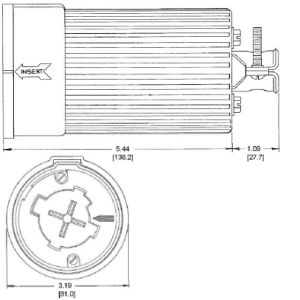

Dimensions

Height
5.44 Inch
Length
3.19 Inch
Width
1.09 in

Certifications and Compliance

Country of Origin
USA
Features
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability
  • Insulated, color coded metallic housing enhances safety and abuse resistance
  • Standard Product
