Hubbell HBL26420 60 Amp 600 Volt 3-Pole 4-Wire Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL26420 | Codale Part # 24331
$2,566.72/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Receptacle, 60A 600V AC, 3-Pole 4-Wire Grounding, Black phenolic interior with long aluminum housing and lift cover, Non NEMA, Screw Terminal, Metallic

Technical Information

Amperage
60 Amp
Applications
Heavy Duty Industrial
Conductor Size
6 AWG
Current
60 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Industrial
Grounding
Grounding
Material
Composite
Mounting Type
Screw, Surface, External
Number of Phases
Multi Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C

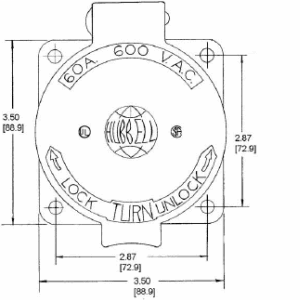

Size
3.5 in x 4.32 in x 4.96 in
Standard
CSA Standard,UL Standard
Tc Connection
Screw Terminal
Type
Heavy Duty, Multi-Phase
Voltage
600 Volt
Wattage
36000 Watt
Wire Count
4
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017495
Color
Aluminum
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501749
Weight
2.55 lb

Dimensions

Height
4.96 Inch
Length
3-1/2 Inch
Width
4.32 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability
  • Metallic weather protective spring loaded cover provides protection from moisture and dust
  • Auto Ejects Improperly Made Connection
