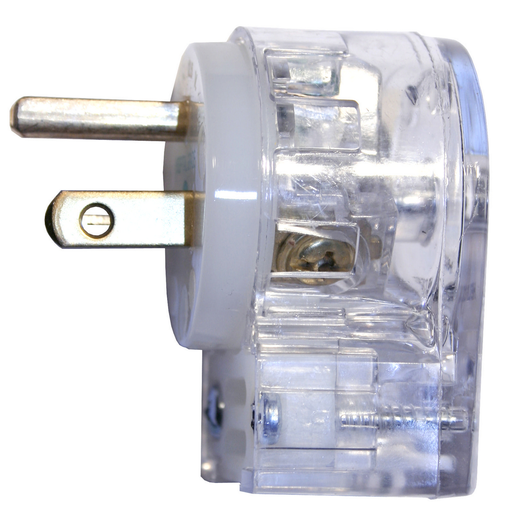

Hubbell HBL8215CAT 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Straight Blade Angle Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8215CAT | Codale Part # 24341
$87.54/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Insulgrip, Hospital Grade, Angled, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Transparent, Single Pack

Technical Information

Amperage
15 Amp
Applications
Hospital Grade
Conductor Size
18-10 AWG
Cord Type
Portable
Current
15 Amp
Grade
Hospital
Grounding
Yes
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Cord
NEMA
5-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2,CSA,Fed. Spec. W-C-596,No. 42 File 285,UL,UL498 File E1706
Style
Insulgrip
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized, Right Angled, 4 Position
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585179254
Color
Transparent
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hospital Grade
Product UPC
78358517925
Weight
0.15 lb

Dimensions

Height
2.11 Inch
Length
2.42 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Individual wiring terminals completely enclosed
  • Powerful, offsetting cord grips clamp on individual conductors
  • Transparent for easy visual inspection of termination
  • 8 position angle plug
