Hubbell IG420 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Orange Isolated Ground Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # IG420 | Codale Part # 24370
$77.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, Isolated Ground, 4-Plex, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Orange, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Base Material
PBT
Conductor Size
14-12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Polycarbonate
Grade
Commercial
Grounding
Isolated Ground
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Tc Connection
Screw, 6 Terminals
Type
1/2 in Raised, Square, Drawn
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
14-12

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585422275
Color
Orange
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
4-Outlet Receptacle
Product UPC
78358542227
Weight
0.4 lb

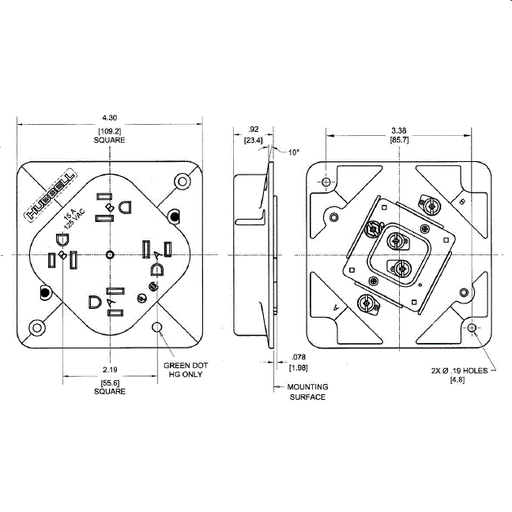

Dimensions

Height
4.3 Inch
Length
4.3 Inch
Width
0.92 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Triangle marking on face indicates isolated ground
  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets
  • Isolated Ground
