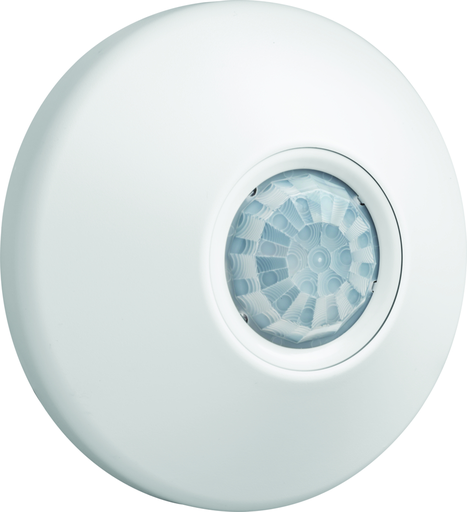

Sensor Switch CMR PDT 10 120/277 VAC 360 Degrees Large Motion White Dual Technology 1-Gang Ceiling Mount Sensor

Manufacturer: Lithonia Lighting | Catalog # CMRPDT10 | Codale Part # 2437965
$227.31/ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Ceiling mount, line voltage, Dual Technology, Low Mount 360deg, SKU - 184CHC

Technical Information

Applications
Automotive & Parking,Bridges & Tunnels,Education,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Power & Gas,Residential,Retail,Roadways,Sports And Recreation,Transportation,Warehouses
Dimmable?
Yes
Lens Material
Plastic
Material
Plastic
Mounting Type
Flush,Surface
Sensing Range
360 degrees
Standard
C-UL-US
Type
Sensor

Manufacturer Information

Brand
SensorSwitch

General Product Info

12-Digit UPC
745975809530
Color
White
Environmental Conditions
Indoor
Finish
Matte
Product Type
Sensor
Product UPC
07497580824
Shape
Round
Weight
1 lb

Dimensions

Height
2-1/2 Inch
Length
4-1/2 Inch
Warranty Length
5 yr
Width
4.500 in

Certifications and Compliance

Country of Origin
Mexico
Application
  • Automotive & Parking
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Power & Gas
  • Residential
  • Retail
  • Roadways
  • Bridges & Tunnels
  • Sports and Recreation
  • Transportation
  • Warehouses
Features
  • DESIGN: For rooms with obstructions, these sensors offer Passive Dual Technology (PDT), which combines Microphonics noise detection and passive infrared (PIR) motion detection
  • TIME DELAY: Time delay feature can be set for 30 seconds to 20 minutes
  • TIMER MODE: 100-hour lamp burn-in timer mode
  • RATINGS: Energy Management Equipment, UL916 (E167435), RoHS compliant
  • COVERAGE: 360 degree coverage
  • RADIAL COVERAGE: 28 ft radial coverage when mounted at 9 ft; 7-15 ft mounting heights provide 16-36 ft radial coverage
  • DESIGN: Best choice for large motion detection
  • NO FIELD CALIBRATION or sensitivity adjustments required
  • WARRANTY: 5-Year Limited Warranty
Mounting
  • Flush
  • Surface
Standard
  • C-UL-US
