Hubbell HBL1221-L 20A 120/277V SP Black Locking Switch. Extra Heavy Duty Industrial Series

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1221L | Codale Part # 24458
$18.70/ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls,Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Black Key Guide

Technical Information

Action
Snap, Off
Actuator
Double Ended Key
Amperage
20 Amp
Applications
Single Pole
Conductor Size
14-10 AWG
Contact Configuration
2-Position
Contact Rating
Full Rated
Current
20 Amp
Enclosure
None
Grade
Industrial
Indicator
Dot Indicates On
Lock Type
Non-Cylindrical
Material
Thermoplastic
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Size
Standard Product Size
Standard
UL
Style
Single Pole
Switch Type
Single Pole
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 C
Type
General Purpose, Standard, 2-Position
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585431444
Color
Black
Product Series
Extra Heavy Duty
Product UPC
78358543144
Weight
0.2 lb

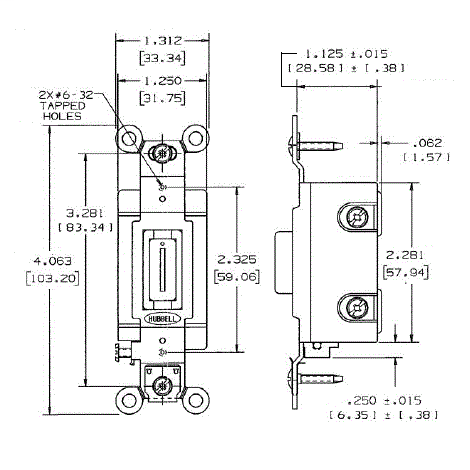

Dimensions

Height
1.13 Inch
Length
4.06 Inch
Width
1.31 in

Certifications and Compliance

Country of Origin
China
Features
  • Large brass binding head screws with deep slots
  • Lock circuits On or Off
  • Strip gauge for accurate wiring
