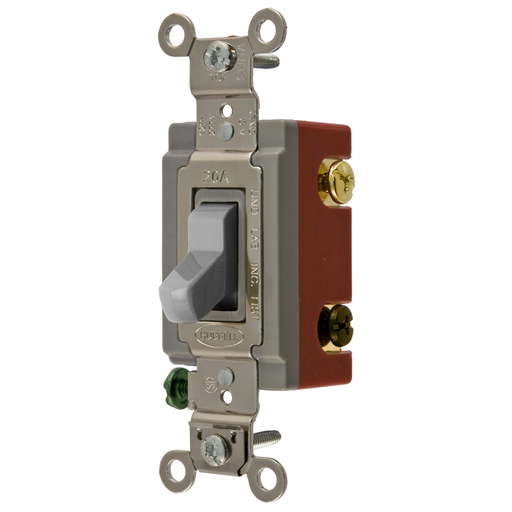

Product image for Hubbell HBL1223GY 20 Amp 120/277 VAC 3-Way Gray Toggle Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL1223GY 20 Amp 120/277 VAC 3-Way Gray Toggle Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1223GY | Codale Part # 24461
$10.41/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Gray Toggle

Technical Information

Action
SPDT
Actuator
Toggle
Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Grade
Industrial
Material
Thermoplastic
Number of Poles
1 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Style
Three Way
Tc Connection
Back and Side Wired
Type
General Purpose, Standard, 3-Way, 2-Position, Extra Heavy-Duty
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585431802
Color
Gray
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Extra Heavy Duty
Product UPC
78358543180
Weight
0.2 lb

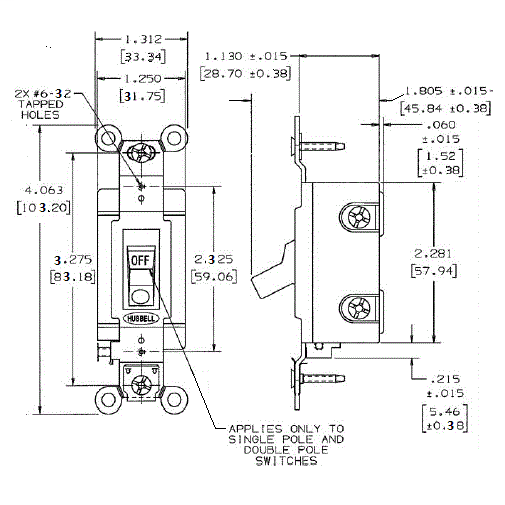

Dimensions

Height
1.87 Inch
Length
4.06 Inch
Width
1.31 in

Certifications and Compliance

Country of Origin
China
Features
  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
