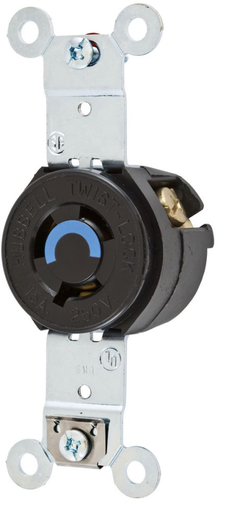

Hubbell HBL4560 15 Amp 250 Volt 2-Pole 3-Wire L6-15R Black Nylon Single Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4560 | Codale Part # 24481
$17.33/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Screw Terminal, Black.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Base Material
RTP
Conductor Size
14-12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
RTP
Grade
Industrial
Grounding
Grounding
Horsepower
1.5 hp
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
L6-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Heavy Duty
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585236605
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358523660
Weight
0.15 lb

Dimensions

Height
1.27 Inch
Length
3.28 Inch
Width
1.790 in

Certifications and Compliance

Country of Origin
USA
Additional Information
  • Wire Size 18 to 10 AWG (Solid/stranded Copper)
  • Contact Material Brass
  • Temperature Rating -40 to 75 Deg C
  • Applicable Standard Federal Specification WC-596
Features
  • Reinforced Thermoplastic Construction
  • High Impact and Heat Resistance Provides Maximum Safety and Longer Life
  • Single Point Break-Off Tabs
  • High Performance Internal Wiring Clamps and Open Terminal Design Provide for the Use of Forked Terminals
  • Mounting Strap Tabs Lock the Body and Base Together
  • Brass Mounting Strap with Stainless Steel Grounding Clip
  • 1-Piece, All Brass Contacts
  • All Terminals are Back and Side Wired Including the Ground
