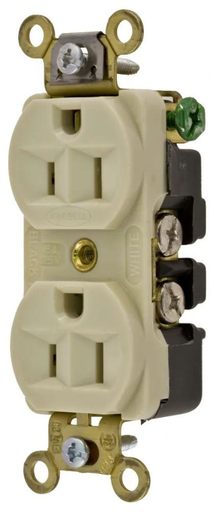

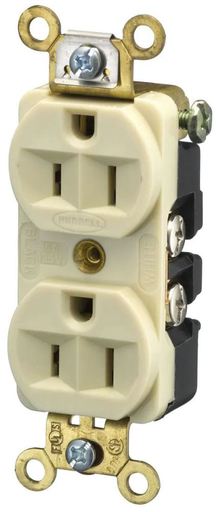

Hubbell HBL5252-I Ivory 15A 125V Duplex Receptacle. Extra Heavy Duty Compact Industrial Series

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5252I | Codale Part # 24489
$7.99/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Compact
Base Material
RTP
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Grounding
Self-Grounding
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA 22.2,Fed. Spec. W-C596G,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
Tc Connection
Back and Side Wired
Type
Extra Heavy Duty, Compact
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 W

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585434902
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
Product Series
Heavy Duty
Product UPC
78358543490
Weight
0.25 lb

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
Puerto Rico
Additional Information
  • Overall Dimension 1.33 Inch Width x 0.8 Inch Depth x 3.28 Inch Height
  • Power Rating 1875 Watt
  • Wire Size 14 to 10 AWG
  • Temperature Rating -40 to 75 Deg C
