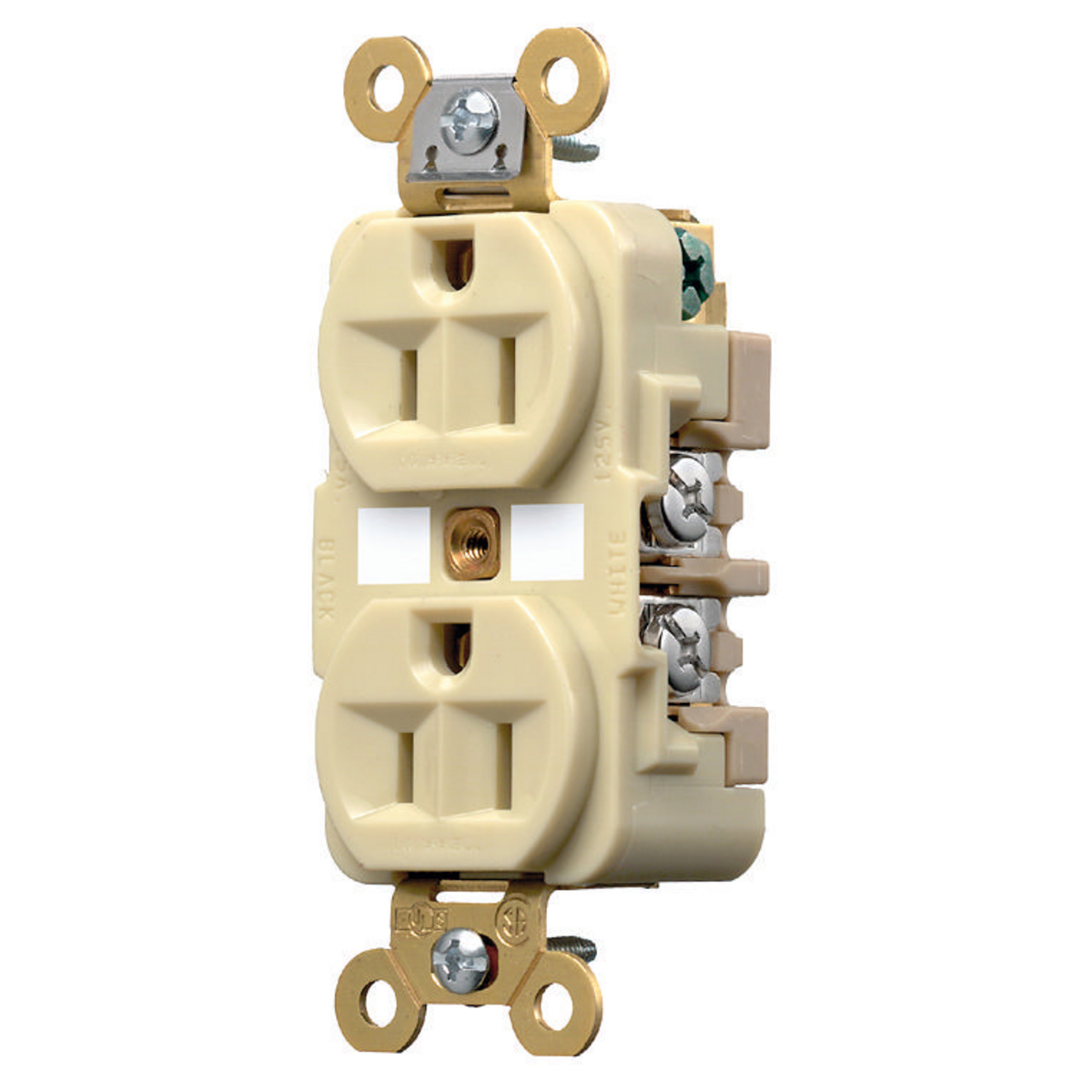

Product image for Hubbell HBL5262-I Ivory 15A 125V Duplex Receptacle. Extra Heavy Duty Industrial Series
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL5262-I Ivory 15A 125V Duplex Receptacle. Extra Heavy Duty Industrial Series

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5262I | Codale Part # 24492
$8.68/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Hospital Grade
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Heavy Duty
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
14-10 in

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585435169
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
Product Series
Extra Heavy Duty
Product UPC
78358543516
Weight
0.25 lb

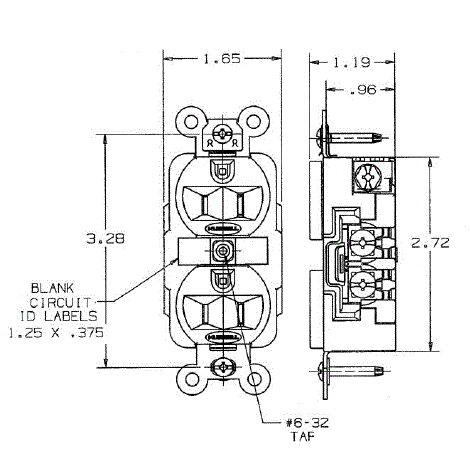

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.65 in

Certifications and Compliance

Country of Origin
USA
Features
  • Back wired ground terminal allows faster, easier installation
  • One-piece brass integral ground strap
  • Finder Groove Face
  • Deep body design with circuit ID face
  • Self Grounding
