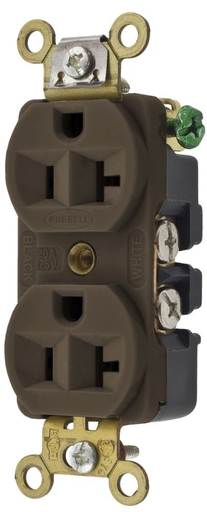

Product image for Hubbell HBL5352 Brown 20A 125V Duplex Receptacle. Extra Heavy Duty Compact Industrial Series
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL5352 Brown 20A 125V Duplex Receptacle. Extra Heavy Duty Compact Industrial Series

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5352 | Codale Part # 24498
$8.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Compact
Base Material
RTP
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA 22.2,Fed. Spec. W-C596G,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
Tc Connection
Back and Side Wired Terminal Screws
Type
Extra Heavy Duty, Compact
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585434964
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
Product Series
Heavy Duty
Product UPC
78358543496
Weight
0.2 lb

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
USA
Additional Information
  • Overall Dimension 3.28 Inch Length x 1.33 Inch Width x 1.05 Inch Height
  • Power Rating 1 HP
  • Operating Temperature -40 to 75 Deg C
  • Flammability Rating UL 94V-0
  • Applicable Standard NEMA WD-6
Features
  • 1-Piece Brass Integral Ground Strap for Low Resistance of Fault Currents
  • Ground Retention Clips for Longer, More Consistent Contact Pressure
  • Exclusive Bypass Contact Design Results in Greater Contact Force and Reduced Heat Buildup
  • ID Marking Surface Provides Quick, Sure Circuit Identification
  • Barbed Assembly Arms Reduce Possibility of Face/Base Separation
  • RTP Base Offers Greater Heat Resistance, Plus Contact Stability
  • External Bundling Terminals Contain Wire Strands and are Designed for Quick Inspection
  • Deep Nylon Body Design Delivers Increased Impact Resistance
