Hubbell HBL7513C 50 Amp 125/250 Volt 3-Pole 3-Wire NEMA 10-50P Black Locking Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7513C | Codale Part # 24516
$302.04/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/CommercialGrade, Straight, 3-Pole 3-Wire Non Grounding, 50A 125/250V, 10-50P , Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
Portable
Current
50 Amp
Grounding
No
Horsepower
3 hp
Material
Composite
Mounting Type
Surface
NEMA
10-50P
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E1706,UL
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized
Voltage
125/250 Volt
Wattage
12500 Watt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585015101
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501510
Weight
0.8 lb

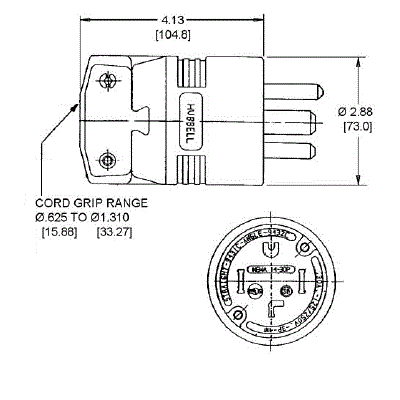

Dimensions

Height
2.88 Inch
Length
4.13 Inch
Width
2.88 in

Certifications and Compliance

Country of Origin
USA
Features
  • Catalog number, ratings and certifications molded in face
  • Gripping ribs provide secure gripping area
  • Supertough nylon housing
