Hubbell HBL7764C 50 Amp 600 VAC/250 VDC 3-Pole 4-Wire Nylon Locking Connector

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7764C | Codale Part # 24517
$619.15/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Nylon housing thermoplastic polyester interior, Black

Technical Information

Amperage
50 Amp
Applications
For Heavy Duty Applications
Conductor Size
8-4 AWG
Cord Size
0.83 - 1.25 in
Current
50 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Nylon
Mounting Type
Cord
Number of Conductors
4-Wire Non-Grounding
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees F
Type
Non-Reversing
Voltage
250 Volt
Wire Count
4
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585237848
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523784
Weight
1.05 lb

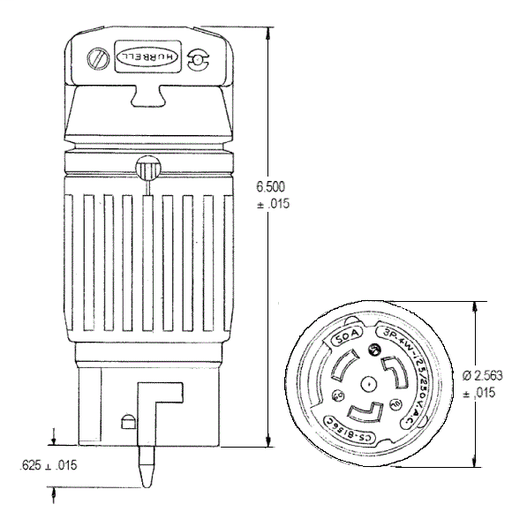

Dimensions

Height
6-1/2 Inch
Length
2.56 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Heavy duty two-piece external cord clamp provides maximum strain relief
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Oversized contacts minimize operating temperature
  • Standard Product
