Hubbell HBL7977 20 Amp 125/250 Volt 3-Pole 3-Wire NEMA 10-50P Black/White Nylon Straight Blade Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7977 | Codale Part # 24522
$327.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 3-Wire Non Grounding, 50A 125/250V, 10-50P, Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
Portable
Current
50 Amp
Grounding
No
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Cord
NEMA
10-50P
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
File E2186,UL,UL Standard 498
Switch Type
4-Way
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized, Angled, 4 Position
Voltage
125/250 Volt
Wattage
12500 Watt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585015132
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501513
Weight
0.55 lb

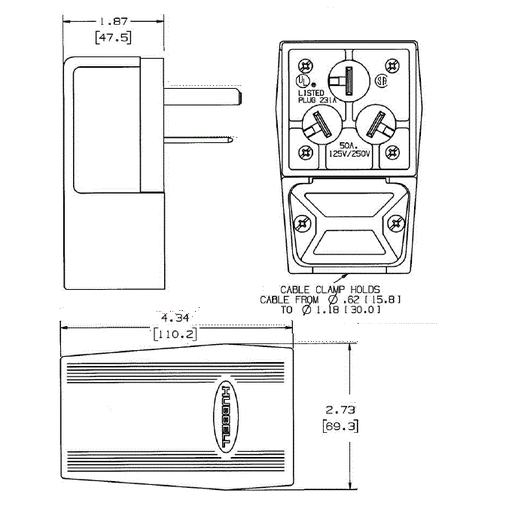

Dimensions

Height
1.88 Inch
Length
4.33 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Heavy Duty
  • Industrial/Commercial Grade
  • Straight
