Hubbell HBL9451C 50 Amp 125/250 Volt 3-Pole 4-Wire NEMA 14-50P Black and White Straight Blade Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL9451C | Codale Part # 24527
$174.82/ea
ea
Log in or register to view your price, purchase history, and more!
16 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Nylon, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50P, Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
Portable
Current
50 Amp
Grounding
Yes
Material
Composite
Mounting Type
Surface
NEMA
14-50P
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized
Voltage
125 Volt
Wattage
12500 Watt
Wire Count
4
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585015323
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501532
Weight
0.85 lb

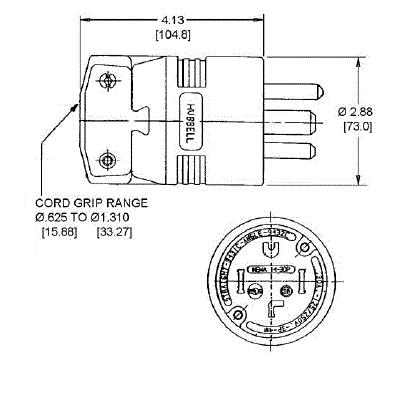

Dimensions

Height
2.88 Inch
Length
4.13 Inch
Width
2.88 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
  • CSA Certified
  • UL Listed File E1706
Features
  • Gripping ribs provide secure gripping area
  • Supertough nylon housing
  • Catalog number, ratings and certifications molded in face
Voltage Rating
  • 125 V
  • 250 V
