Hubbell HBL5366-C 20A 125V INSULGRIP Black Nylon Plug, Straight

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5366C | Codale Part # 24549
$25.27/ea
ea
Log in or register to view your price, purchase history, and more!
160 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 125V, 5-20P, Black and White, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Conductor Size
12-10 AWG
Cord Type
Portable
Current
20 Amp
Grounding
Yes
Horsepower
1 hp
Material
Composite
Mounting Type
Surface
NEMA
5-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No. 42 File 280,CSA,Fed. Spec. W-C596G,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585173955
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Insulgrip
Product UPC
78358517395
Weight
0.15 lb

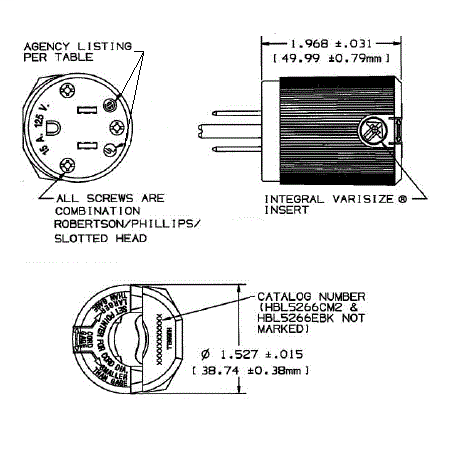

Dimensions

Height
1.96 Inch
Length
1.52 Inch
Width
1.52 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing is impact and chemical resistant
  • VARI-SIZE adjustable cord clamp
  • Fast lead assembly screws
  • Beveled housing prevents snagging
