Hubbell HBL8431C 30 Amp 3-Phase 250 VAC 3-Pole 4-Wire NEMA 15-30P Black Nylon Straight Blade Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8431C | Codale Part # 24556
$165.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Plug Industrial Grade, 3-Pole 4-Wire Grounding, 30A 3 Phase 250V AC, 15-30P, Single Pack.

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
Portable
Current
30 Amp
Grounding
Yes
Material
Thermoplastic
Mounting Type
Cord
NEMA
15-30P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Size
Standard Sized
Standard
CSA,File E1706,UL
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized
Voltage
250 Volt
Wattage
7.5 kW
Wire Count
4
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585015408
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501540
Weight
0.8 lb

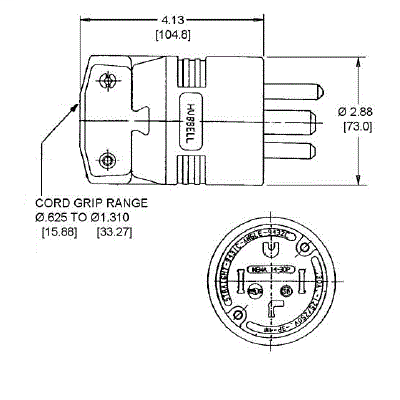

Dimensions

Height
3.418 Inch
Length
5.168 Inch
Width
3.4 in

Certifications and Compliance

Country of Origin
USA
Features
  • Catalog number, ratings and certifications molded in face
  • Gripping ribs provide secure gripping area
  • Supertough nylon housing
