Hubbell HBL8460A 60 Amp 250 Volt 3-Pole 4-Wire NEMA 15-60R Black Single Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8460A | Codale Part # 24559
$134.01/ea
ea
Log in or register to view your price, purchase history, and more!
10 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade, 3-Pole 4-Wire Grounding, 60A 3 Phase 250V AC, 15-60R, Black, Single Pack.

Technical Information

Amperage
60 Amp
Applications
Heavy duty, high leverage diagonal cutter
Conductor Size
12-6 AWG
Connection Type
Back and Side Wire
Current
60 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
10 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
15-60R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,File E2186,NEMA® WD-6,UL
Tc Connection
Back & Side Wired
Type
Heavy Duty
Voltage
2,000 Volt
Wattage
15000 Watt
Wire Count
4
Wire Size
12-6 A

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015187
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
Product UPC
78358501518
Weight
0.6 lb

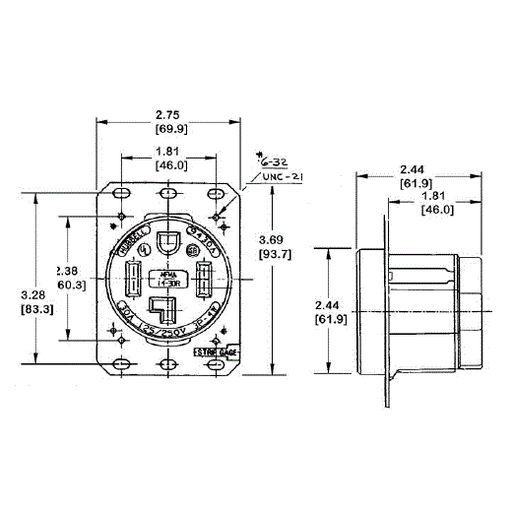

Dimensions

Height
2.678 Inch
Length
3.28 Inch
Width
1.81 in

Certifications and Compliance

Country of Origin
USA
Features
  • Catalog number, ratings and certifications molded in face
  • Sequenced contacts assure protection
  • One piece design power and ground contacts
  • Standard
