Hubbell HBL8461-C Black 60A 3Ph 250V AC Nylon Heavy-Duty Plug, Straight

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8461C | Codale Part # 24560
$223.86/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercia lGrade, Straight, 3-Pole 4-Wire Grounding, 60A 3 Phase 250V AC, 15-60P, Black, Single Pack.

Technical Information

Amperage
60 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
Portable
Current
60 Amp
Grounding
Yes
Horsepower
10 hp
Material
Composite
Mounting Type
Surface
NEMA
15-60P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E1706,UL
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized
Voltage
250 Volt
Wattage
15k Watt
Wire Count
4
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585015194
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501519
Weight
0.85 lb

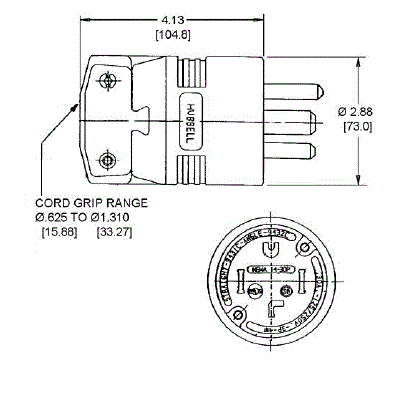

Dimensions

Height
2.88 Inch
Length
4.13 Inch
Width
2.88 in

Certifications and Compliance

Country of Origin
USA
Features
  • Catalog number, ratings and certifications molded in face
  • Gripping ribs provide secure gripping area
  • Supertough nylon housing
