Hubbell HBL9330 Black 30A 250V Single Flush Heavy-Duty Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL9330 | Codale Part # 24562
$38.44/ea
ea
Log in or register to view your price, purchase history, and more!
50 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, RTP, Industrial Grade, 2-Pole 3-Wire Grounding, 30A 250V, 6-30R, Black, Single Pack.

Technical Information

Amperage
30 Amp
Applications
Heavy duty, high leverage diagonal cutter
Conductor Size
10-4 AWG
Connection Type
Back and Side Wire
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
6-30R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,File E2186,NEMA® WD-6,UL
Tc Connection
Back & Side Wired
Type
Heavy Duty
Voltage
250 Volt
Wattage
7500 Watt
Wire Count
3
Wire Size
12-4 in

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015231
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
Product UPC
78358501523
Weight
0.4 lb

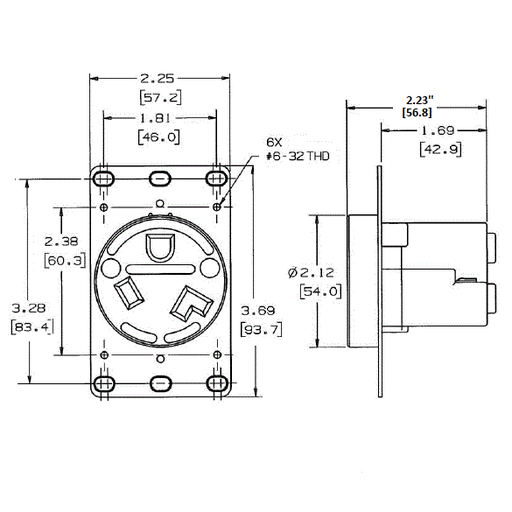

Dimensions

Height
2.23 Inch
Length
3.28 Inch
Width
2.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
  • Standard
