Hubbell HBL9360 50 Amp 125 Volt 2-Pole 3-Wire NEMA 5-50R Black Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL9360 | Codale Part # 24564
$77.70/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, RTP, Industrial Grade, 2-Pole 3-Wire Grounding, 50A 125V, 5-50R, Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
Heavy Duty
Conductor Size
10-4 AWG
Connection Type
Back and Side Wire
Current
50 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-50R
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Tc Connection
Back & Side Wired
Type
Heavy Duty
Voltage
2,000 Volt
Wattage
6250 Watt
Wire Count
3
Wire Size
12-4 W

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015262
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501526
Weight
0.45 lb

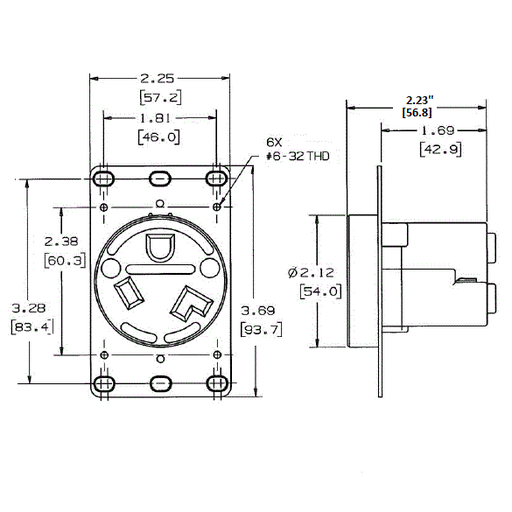

Dimensions

Height
2.23 Inch
Length
3.28 Inch
Width
2.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
  • Standard
