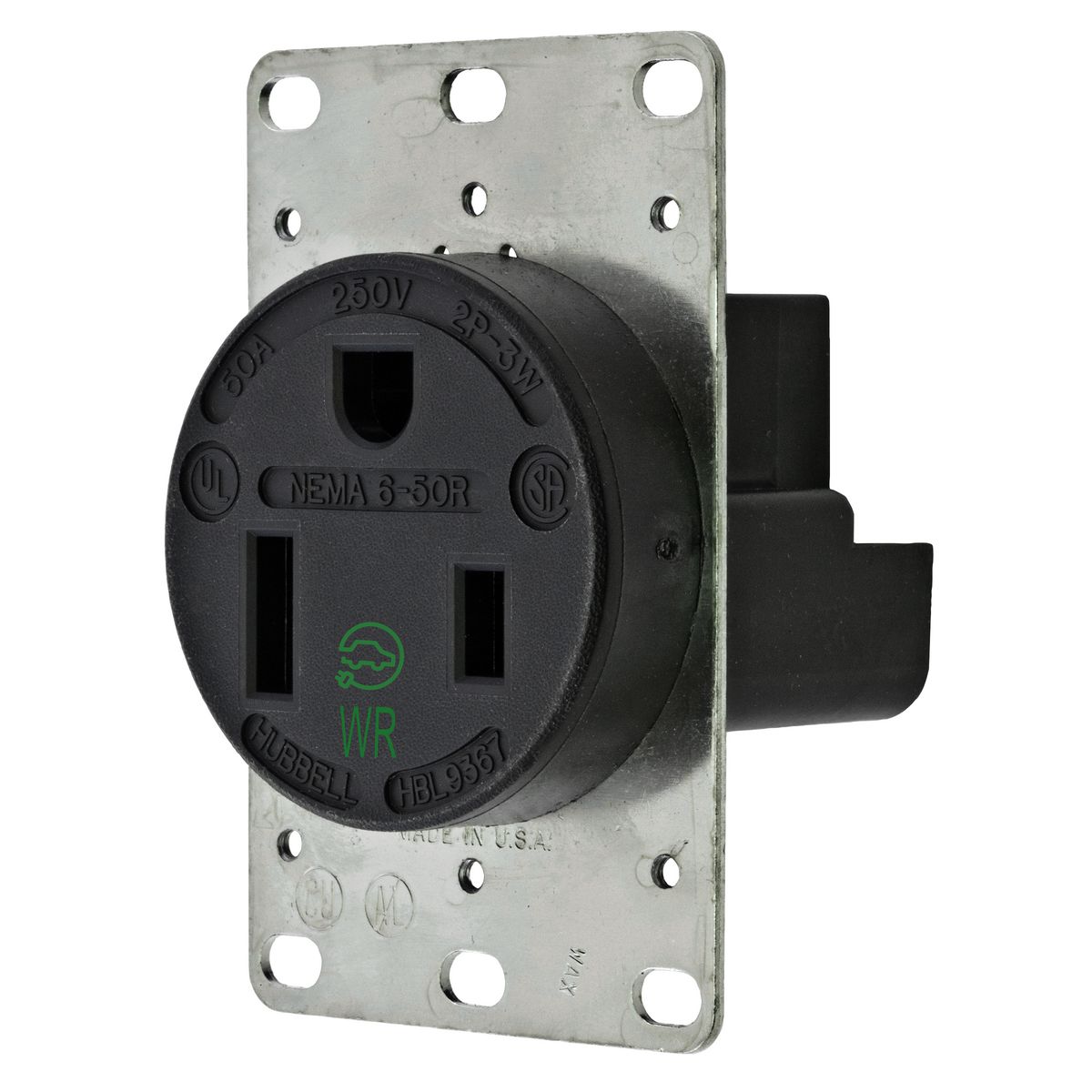

Hubbell HBL9367 Black 50A 250V Single Flush Heavy-Duty Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL9367 | Codale Part # 24566
$39.93/ea
ea
Log in or register to view your price, purchase history, and more!
93 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, RTP, Industrial Grade, 2-Pole 3-Wire Grounding, 50A 250V, 6-50R, Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
Heavy duty, high leverage diagonal cutter
Conductor Size
10-4 AWG
Connection Type
Back and Side Wire
Current
50 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
6-50R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Tc Connection
Back & Side Wired
Type
Heavy Duty
Voltage
250 Volt
Wattage
12500 Watt
Wire Count
3
Wire Size
12-4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015279
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
Product UPC
78358501527
Weight
0.45 lb

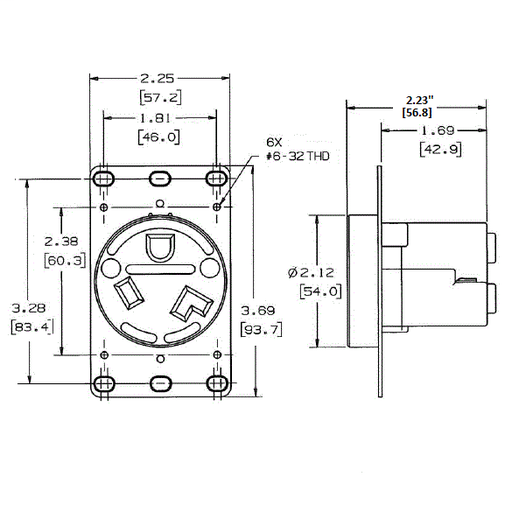

Dimensions

Height
2.23 Inch
Length
3.28 Inch
Width
2.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Tailored for EV Charging: This receptacle is purpose-built to cater to the specific needs of EV charging. It incorporates features and specifications that are optimized for the safe and efficient charging of electric vehicles.
  • Industrial-Grade Construction: This EV receptacle boasts a robust and durable construction. It is engineered using high quality materials that can withstand demanding environments, ensuring long-lasting performance and reliability.
  • Secure Connection: Terminal box shields against loose wires and external damage with a durable enclosure. Features a clamping mechanism for tight, efficient wire termination, reducing power loss or overheating risks.
  • Contact Force & Durability: Thick wall terminal box offers 50% greater contact force for secure connections, minimizing power interruptions. Designed for heavy use, it withstands frequent insertions and removals, ensuring lasting performance.
  • Fast & Efficient Charging: Features a 3-pole, 4-wire grounding for secure EV charging, minimizing electrical faults. With a 50A, 125/250V rating, it ensures high-power, faster charging times, promoting safety and efficiency.
  • Effortless Installation: This EV Charging Receptacle is designed for easy setup, featuring a straightforward wiring mechanism suitable for both professional electricians and DIY enthusiasts, ensuring a hassle-free installation process.
  • Standard
