Hubbell HBL9368 Black 50A 250V Nylon Heavy-Duty Plug, Angle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL9368 | Codale Part # 24567
$148.45/ea
ea
Log in or register to view your price, purchase history, and more!
43 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Nylon, 4-Position, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 50A 250V, 6-50P, Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
Portable
Current
50 Amp
Grounding
Yes
Horsepower
3 hp
Material
Composite
Mounting Type
Surface
NEMA
6-50P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No. 42 File 280,CSA,UL,UL498 File E1706
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized, Angled, 4 Position
Voltage
250 Volt
Wattage
12500 Watt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585015286
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501528
Weight
0.55 lb

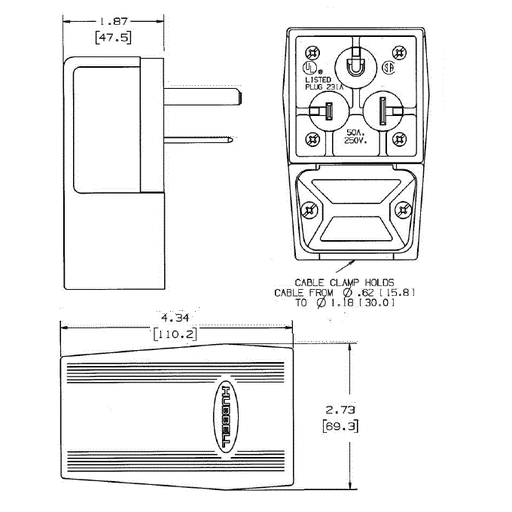

Dimensions

Height
1.88 Inch
Length
4.34 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Material & Construction: Crafted from industrial-grade nylon, this durable plug withstands daily use, ensuring long-lasting, reliable performance essential for EV charging system integrity.
  • Configuration: Includes a 4-position, angled layout with 3 poles and 4 wires, grounding included. It meets EV charging's high demands and boosts safety by reducing electrical hazards.
  • Electrical Rating: Boasting a 50A, 125/250V capacity, this plug is suited for high-powered EV charging stations, ensuring efficient and reliable power delivery.
  • Safety Compliance: This plug meets strict safety standards with a grounding pin and heavy-duty materials, reducing electrical shock risks and ensuring a secure connection to protect equipment and users.
  • Ease of Use: Designed with an angled interface and ergonomic handle, this plug allows easy operation and handling in tight spaces, ensuring safe and effortless insertion and removal.
  • Long-Term Reliability: Investing in Hubbells Straight Blade Male Plug means choosing a product that will not only meet the current demands of EV charging but also continue to deliver performance and safety long into the future.
