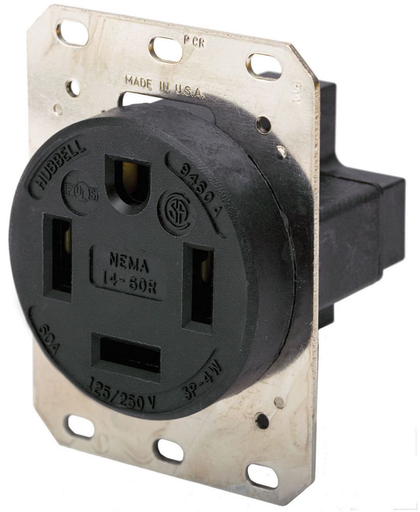

Hubbell HBL9460A 60 Amp 125/260 Volt 3-Pole 4-Wire NEMA 14-60R Black Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL9460A | Codale Part # 24568
$117.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Straight Blade Devices, Receptacles, RTP, Industrial Grade, 3-Pole 4-Wire Grounding, 60A 125/250V, 14-60R, Black, Single Pack.

Technical Information

Amperage
60 Amp
Applications
Heavy Duty
Conductor Size
12-6 AWG
Connection Type
Back and Side Wire
Current
60 Amp
Dielectric Strength
Withstands 2,000V minimum
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
14-60R
Number of Poles
3 Pole
Number of Wires
4-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Tc Connection
Back and Side Wired Terminal Screws
Type
Heavy Duty
Voltage
125/250 Volt
Wattage
15000 Watt
Wire Count
4
Wire Size
12-4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015347
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
Product UPC
78358501534
Weight
0.6300 lb
Additional Information
  • Blade Material 0.04 Inch Brass
  • Enclosure IP20
  • Operating Temperature -40 to 75 Deg C
Features
  • Sequenced Contacts Assure Protection
  • Catalog Number, Ratings and Certifications Molded in Face
  • 1-Piece Design Power and Ground Contact
