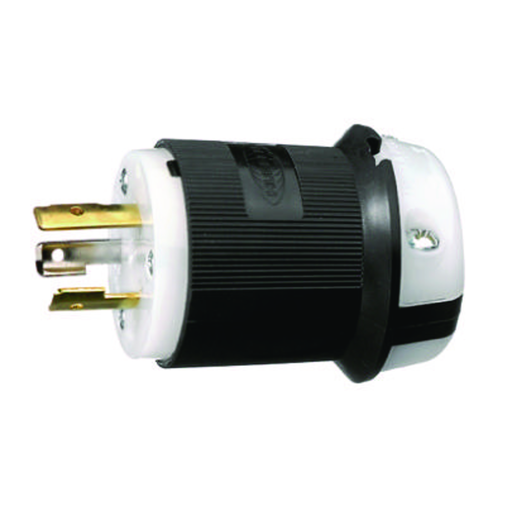

Hubbell HBL2311 20A 125V Twist-Lock INSULGRIP Black Nylon Plug, Straight

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2311 | Codale Part # 24571
$23.62/ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Black and White Nylon.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial Application
Conductor Size
12-10 AWG
Cord Type
Portable
Current
20 Amp
Grounding
Yes
Horsepower
1 hp
Material
Composite
Mounting Type
Surface
NEMA
L5-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Type
Insulgrip, Standard Sized
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585037707
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358503770
Weight
0.25 lb

Dimensions

Height
2-3/4 Inch
Length
2.26 Inch
Width
2.26 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
