Hubbell HBL2723 30A 3Ph 250V AC Twist-Lock INSULGRIP Black & White Nylon Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2723 | Codale Part # 24594
$119.68/ea
ea
Log in or register to view your price, purchase history, and more!
17 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30R, Screw Terminal, Black and White.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Connection Type
Pressure Screw
Current
30 Amp
Material
Composite
NEMA
L15-30R
Number of Conductors
4
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Female, Standard
Voltage
250 Volt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585039251
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503925
Weight
0.40 lb

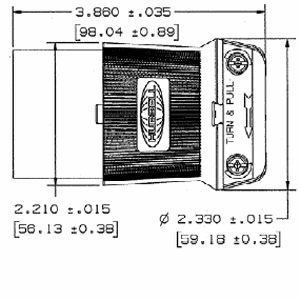

Dimensions

Height
3.86 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
