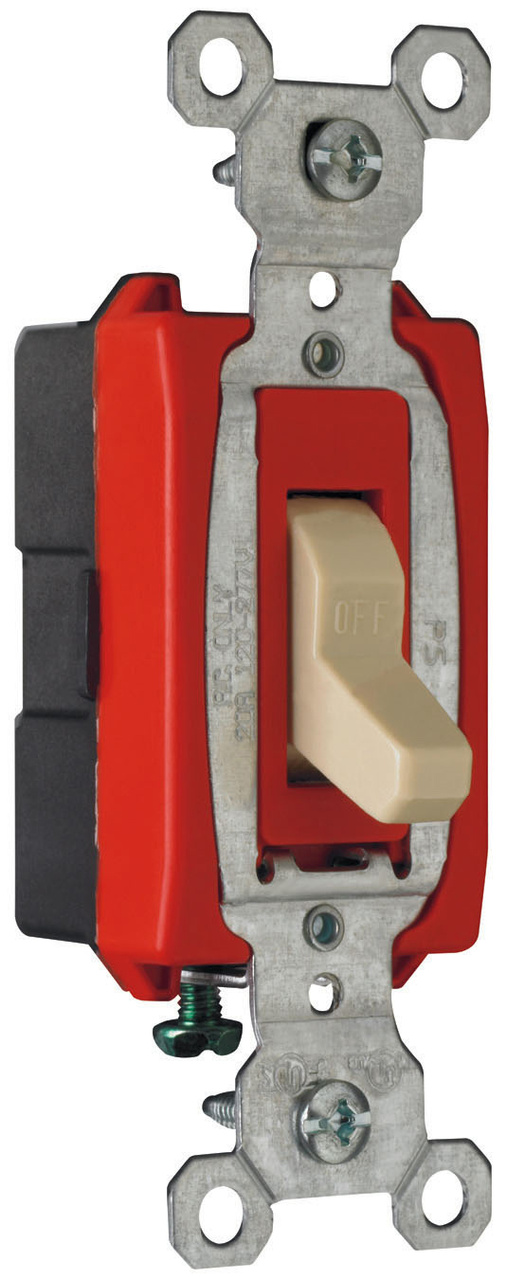

Pass & Seymour CS20AC1-I Commercial 1Pole Switch, Side Wire, 20Amp 120/277Volt, Ivory

Manufacturer: Legrand Pass & Seymour | Catalog # CS20AC1I | Codale Part # 2460720
$8.87/ea
ea
Log in or register to view your price, purchase history, and more!
561 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Commercial 1pole Switch, Side Wire, 20amp 120/277volt, Light Almond.

Technical Information

Action
Off
Actuator
Toggle
Amperage
20 Amp
Applications
Commercial
Contact Rating
120 V
Duty Rating
Heavy Duty
Enclosure
Nylon
Grade
Commercial
Material
Thermoplastic
Number of Poles
1 Pole
Size
3.3 in
Type
Heavy Duty
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007126457
Color
Ivory
Finish
Matte
Product UPC
78500712645
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
