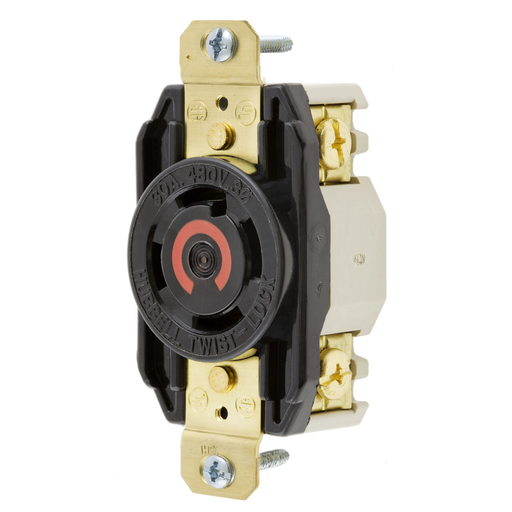

Hubbell HBL2730 30A 3Ph 480V AC Twist-Lock Black Single Flush Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2730 | Codale Part # 24614
$42.54/ea
ea
Log in or register to view your price, purchase history, and more!
10 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

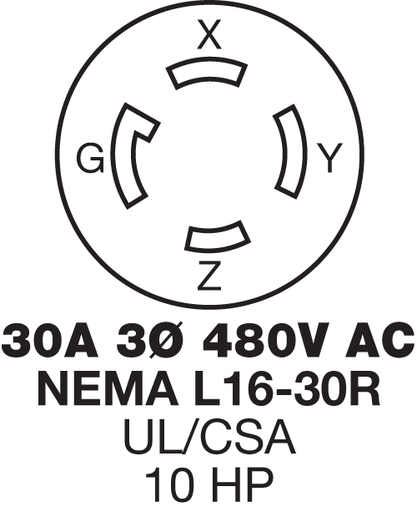

Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30R, Screw Terminal, Black

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Base Material
Plastic,RTP
Conductor Size
16-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
10 hp
Material
Nylon
NEMA
L16-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 To 85 degrees C
Size
3.28 in x 1.7 in x 1.31 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Heavy Duty
Voltage
480 Volt
Wattage
14400 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585236155
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358523615
Weight
0.25 lb

Dimensions

Height
1.31 Inch
Length
3.28 Inch
Width
1.7 in

Certifications and Compliance

Country of Origin
USA
Features
  • High-impact, abuse-resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Standard
