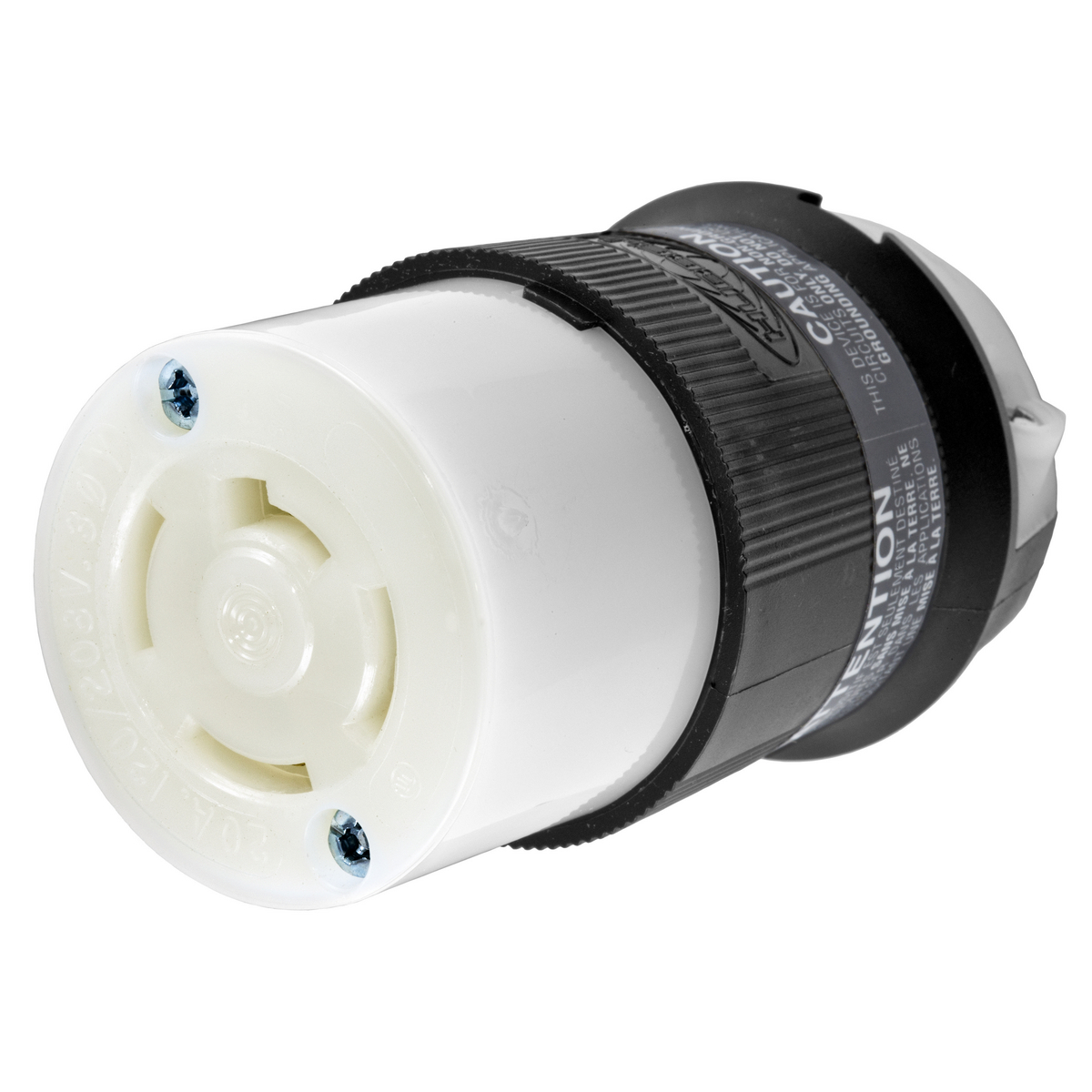

Hubbell HBL7413-C 20A 3PhY 120/208V AC Non-NEMA Twist-Lock Black Nylon Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7413C | Codale Part # 24667
$218.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non- Grounding, Non-NEMA, Screw Terminal, Black and White Nylon.

Technical Information

Amperage
20 Amp
Applications
For Heavy Duty Industrial
Conductor Size
14-12 AWG
Connection Type
Pressure Screw Terminal
Current
20 Amp
Material
Plastic
Number of Conductors
4
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Ports
4
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C/-25 to 75 degrees C
Type
Standard, Non-Grounding, Straight, Gland Nut
Voltage
120/208 Volt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585037585
Color
Black/White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503758
Weight
0.4 lb

Dimensions

Height
3.86 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
