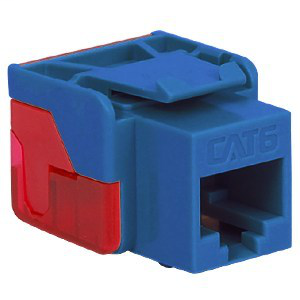

ICC IC1078L6BL BLUE CAT6 EZ MODULAR JACK

Manufacturer: ICC Premise Wiring Products | Catalog # IC1078L6BL | Codale Part # 2492279
$9.02/ea
ea
Log in or register to view your price, purchase history, and more!
16 available

For Delivery

Not in local stock *
Check your local branch
ICC.s EZ Category 6 modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The EZ connector.s flat back IDC construction offers faster installation through its straight through in-line termination design and one piece snap-on termination cap.

Technical Information

Connection Type
8P8C,Insulation Displacement Connector (IDC); Accepts 22-24 AWG Solid Wire
Current
1.5 Amp
Performance Level
CAT6

Manufacturer Information

Brand
ICC Compliance Center, Inc.

General Product Info

12-Digit UPC
633758017251
Color
Blue
Housing Material
ABS, UL 94V-0
Product Type
Keystone Jacks
Product UPC
63375801725
Weight
0.0100 lb

Certifications and Compliance

Country of Origin
Taiwan
Features
  • CAT6 rated connectors provide excellent performance.
  • Data networks requiring max speed and bandwidth.
  • PCB technology provides maximum performance and superior signal quality.
  • Enhanced crosstalk cancellation reduces return loss and improves performance.
  • Rejecting noise and unwanted signals.
  • Designed with in-line 110 IDC, in-sequence termination reducing termination time.
  • Terminate with 110 punch down tool.
  • JackEasy Termination Tool.
  • One piece termination cap allows for a quick and easy termination.
  • Includes an integrated TIA-568A/B color wiring diagram.
  • Backward compatible with all lower rated category components.
  • Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
  • Used with ICC Category 6 patch cords.
  • Exceeds ANSI/TIA-568-C requirements for permanent performances.
  • UL 1863 Compliant.
