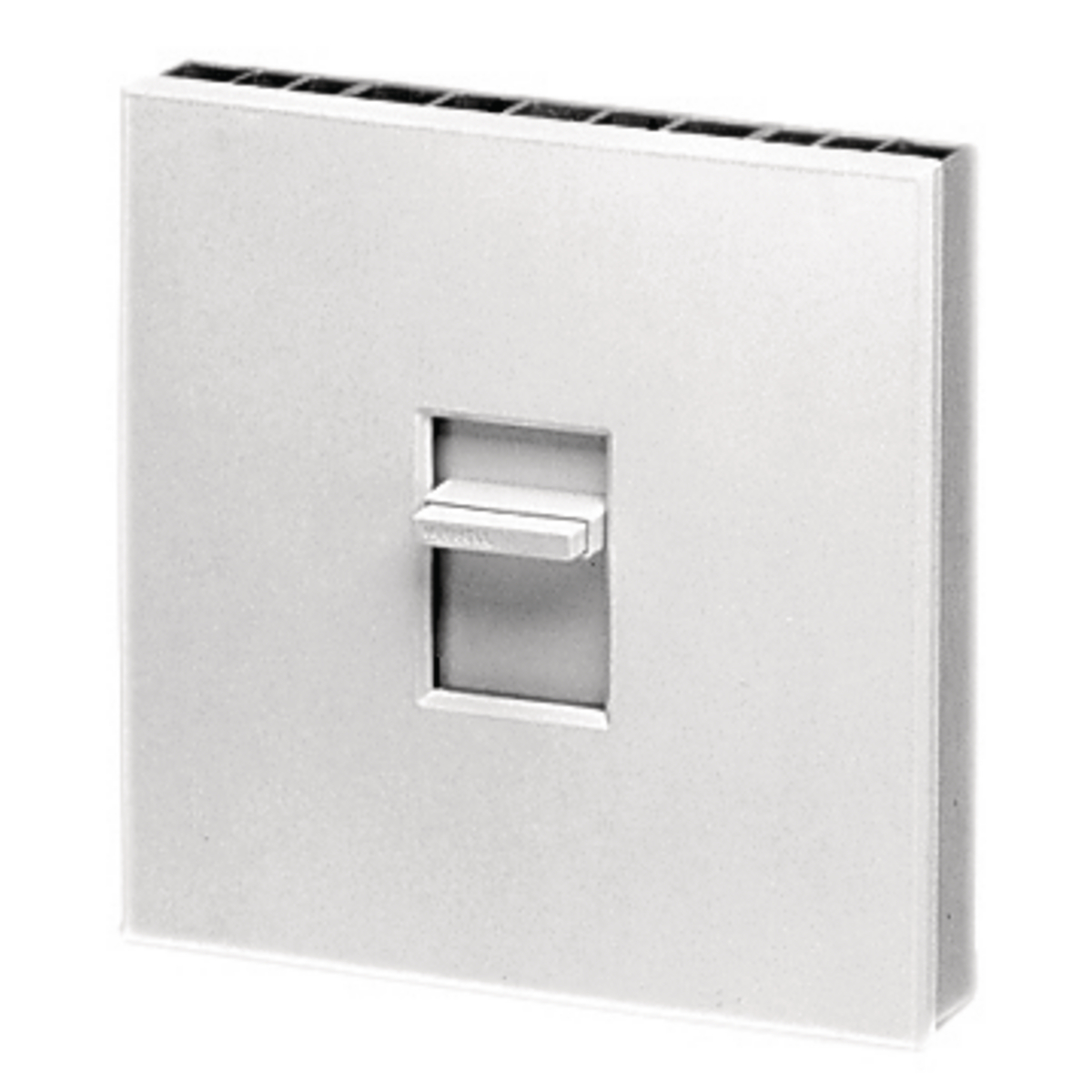

Product image for Hubbell AS203 2000 W 120 VAC 1-Pole/3-Way White Incandescent Preset Slide Control Dimmer
Image thumbnail 0
Image thumbnail 1
Email

Hubbell AS203 2000 W 120 VAC 1-Pole/3-Way White Incandescent Preset Slide Control Dimmer

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # AS203 | Codale Part # 25063
$1,071.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Dimmer, Rotary Dimmer, Three Way, 2000W , Beige

Technical Information

Actuator
Slider
Amperage
16 Amp
Applications
Commercial Lighting Controls
Enclosure
None
Lamp Type
Incandescent
Mounting Type
Screw
Number of Poles
1-1 Pole
Operating Cycles
10000
Operating Temperature
-40 degrees C
Power Rating
2000 W
Size
Standard Sized
Standard
UL
Style
Single Pole/Three Way
Switch Type
Single Pole
Tc Connection
Wire Leads
Temperature Rating
-40 degrees C Minimum without Impact, 75 degrees C Maximum
Terminal Type
Wire Lead
Type
Architectural Preset Slider, Standard, 1-Pole, Rotary
Voltage
120 Volt
Wattage
2000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Lighting Controls

General Product Info

12-Digit UPC
783585224077
Color
White
Product Series
Architectural Grade
Product UPC
78358522407
Weight
0.95 lb

Dimensions

Height
3.7 Inch
Length
5.4 Inch
Width
5.300 in

Certifications and Compliance

Country of Origin
USA
Features
  • Rotary Dimmer
  • Three Way
  • 2000W
