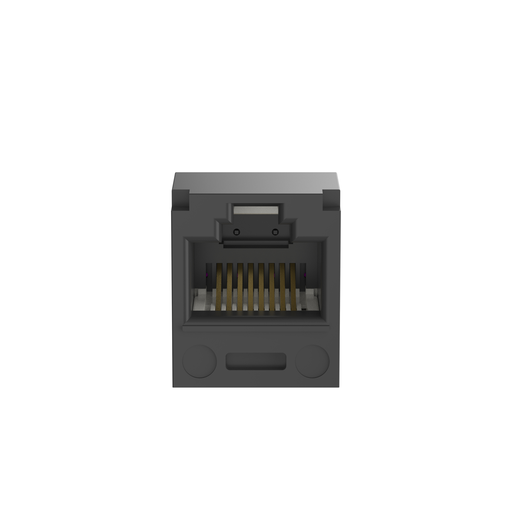

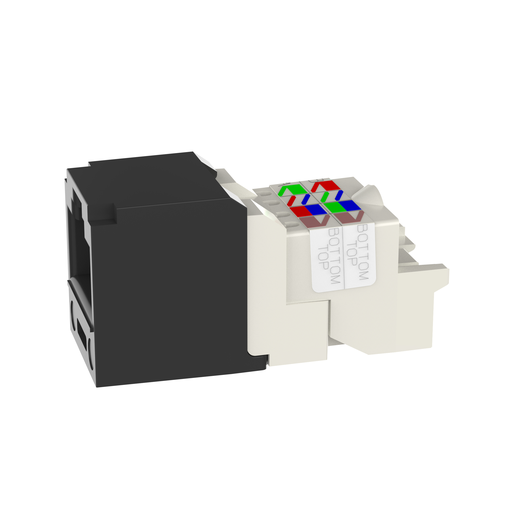

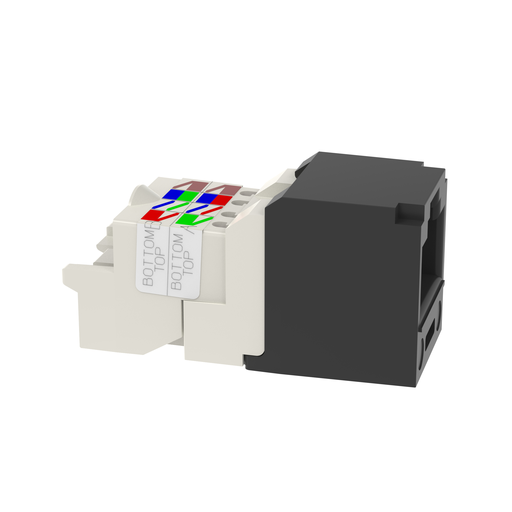

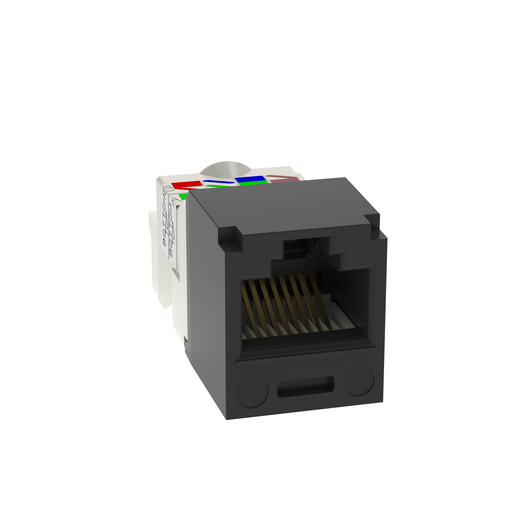

Panduit CJ688TPBL Mini-Com CAT 6 8-Position 8-Wire UTP Jack Module

Manufacturer: PANDUIT | Catalog # CJ688TPBL | Codale Part # 2516629
$32.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The Mini-Com® Cat 6 UTP RJ45 TP Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is black.

Technical Information

Applications
Unshielded
Cable Size
22 - 24 AWG
Cable Type
Category 6
Material
ABS Plastic
Max Operating Temperature
149 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Type
RJ45, Unshielded, Universal

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983992690
Color
Black
Product UPC
07498399269
Used With
Litz Wire Conductor, Round Cable, Solid Core
Weight
0.0200 lb

Dimensions

Depth
1.43 Inch
Height
0.71 Inch
Overall Length
36.3 mm
Width
16 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Standards at Swept Frequencies 1 to 250 MHz, Meets ANSI/TIA-1096-A, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, Meets IEC 60603-7, UL 1863 Approved and RoHS Compliant
