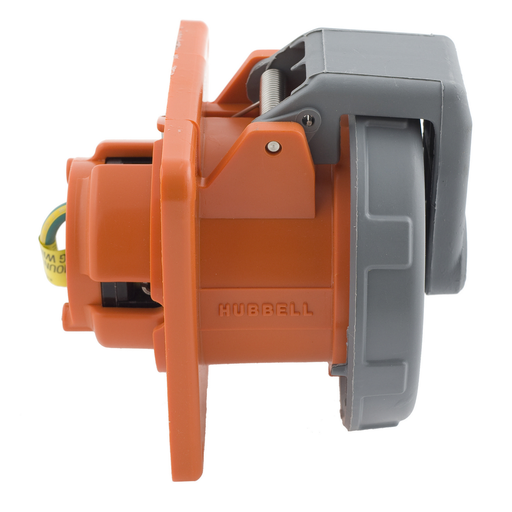

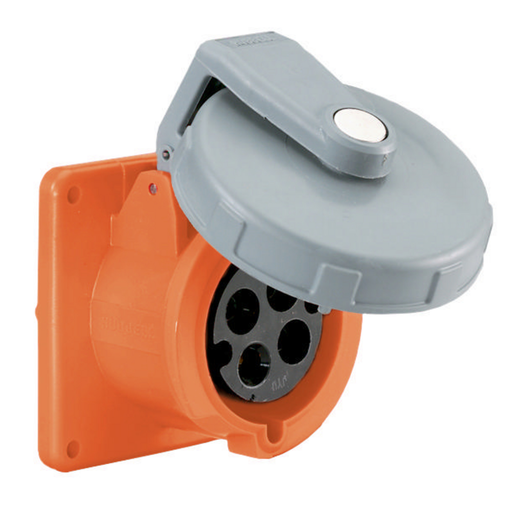

Hubbell HBL4100R12W 100 Amp 125/250 Volt 3-Pole 4-Wire Watertight IEC Pin and Sleeve Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4100R12W | Codale Part # 25341
$1,009.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 100A 125/250V, 3-Pole 4- Wire Grounding, Terminal Screws, Orange, Watertight

Technical Information

Amperage
100 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
3-1/0 AWG
Current
100 Amp
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Screw, External, Surface
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
Standard UL1682
Style
Standard Service
Tc Connection
Pressure Plate
Type
Single Flanged
Voltage
125/250 Volt
Wattage
25000 Watt
Wire Count
4
Wire Size
3-0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585404080
Color
Orange
Environmental Conditions
Watertight
Product Series
HBL Heavy Duty
Product UPC
78358540408
Weight
3.9 lb

Dimensions

Height
5-3/4 Inch
Length
7 Inch
Width
6.400 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC 309-1 And,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard UL1682 & UL 1686C2,UL Standard UL1682 & UL1686C2
Country of Origin
USA
Features
  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing
  • Watertight
