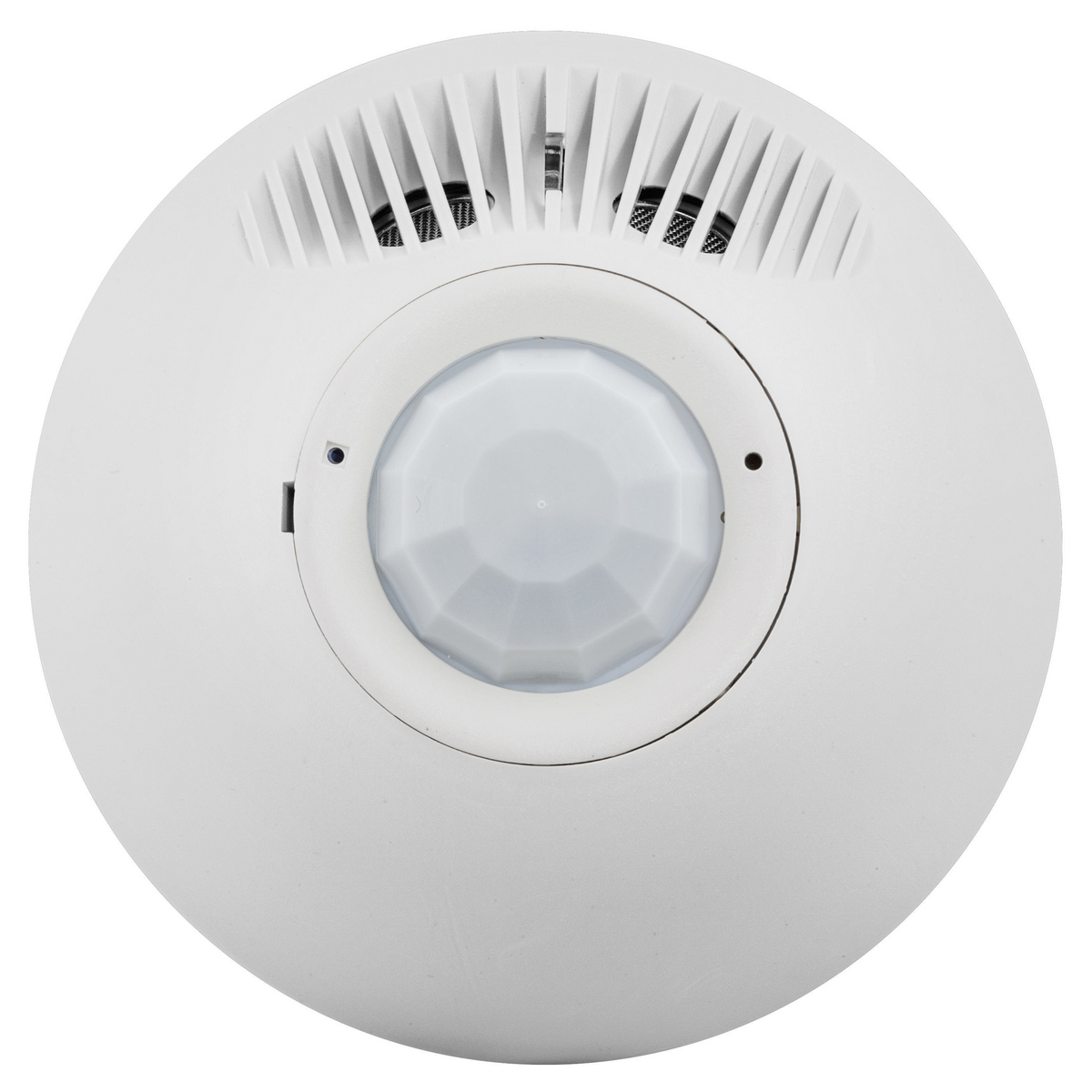

Product image for Hubbell ATD500C 24 VDC 500 Square Foot White Ultrasonic and Passive Infrared Adaptive Ceiling Mount Sensor
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Hubbell ATD500C 24 VDC 500 Square Foot White Ultrasonic and Passive Infrared Adaptive Ceiling Mount Sensor

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # ATD500C | Codale Part # 25620
$224.16/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Hubbell Wiring Device Kellems, Switches and Lighting Controls, OccupancySensors, Adaptive Technology Dual (Ultrasonic and PIR) Ceiling Sensors,500 Square Feet Coverage

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585392455
Color
Office White
Product UPC
78358539245
Weight
0.0670 lb

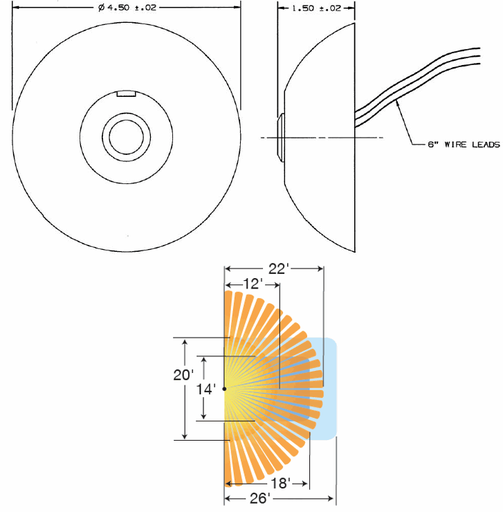

Dimensions

Height
1-1/2 Inch
Overview
  • Switches and Lighting Controls, Occupancy Sensors, Adaptive Technology Dual (Ultrasonic and PIR) Ceiling Sensors, 500 Square Feet Coverage
  • Install and Forget\" operation. Auto-adjusting adaptive technology eliminates manual adjustments
  • Coverage 500 sq. ft. (180°), low voltage sensor
  • Standard Product
  • lights turning ON when the space is un-occupied. Offer the best performance for most applications
  • Minimize the risk of false triggering
  • Office White ABS enclosure blends with ceiling tile
  • Red LED indicates passive infrared detection and Green LED indicates ultrasonic detection
Performance
  • Controls - Ambient Light - 1 to 1000 foot candles
  • Controls - Sensitivity - Adaptive 0 to 100%
  • Controls - Time Delay - Test (8 seconds), adaptive 8 to 40 minutes
  • Electrical - Power Requirements - 24V DC nominal, 33mA from Hubbell CU series control unit
  • Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour
  • Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity
  • Sensing Indicators - Passive Infrared - Red LED
  • Sensing Indicators - Ultrasonic - Green LED
