Hubbell HBL1533 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Yellow Straight Blade Connector

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1533 | Codale Part # 25714
$38.91/ea
ea
Log in or register to view your price, purchase history, and more!
80 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Female Connector Body, Elasto-Grip Dust Tight, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 20A 125V, 5-20R, Yellow, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Current
20 Amp
Horsepower
1 hp
Material
Composite
NEMA
5-20R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2 No. 42 File 280C,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
Tc Connection
Screw Terminals
Temperature Rating
75 degrees C Maximum Continuous, -40 degrees C Minimum Without Impact
Type
Standard, Insulated, 2-Pole
Voltage
125 Volt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Elastogrip®

General Product Info

12-Digit UPC
783585013350
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Elastogrip
Product UPC
78358501335
Weight
0.15 lb

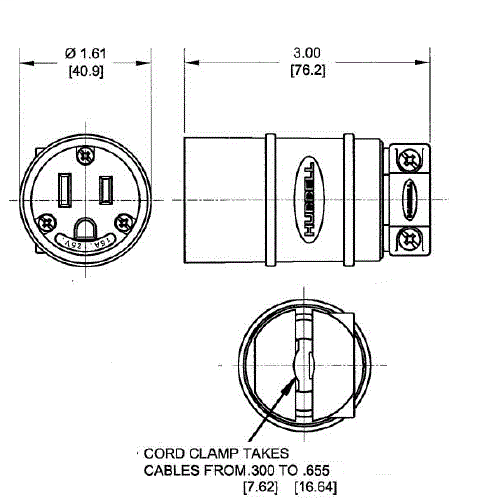

Dimensions

Height
3 Inch
Length
3 Inch
Width
1.61 in

Certifications and Compliance

Country of Origin
USA
Features
  • Thermoplastic elastomer housing
  • Dust and moisture seal around cord
  • Dust-Tight
