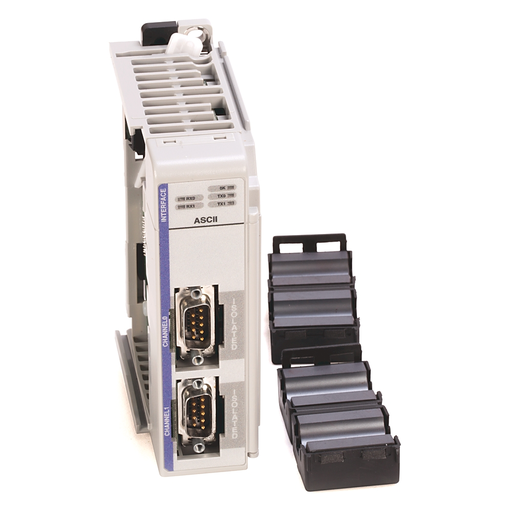

Allen-Bradley 1769-ASCII Compactlogix Ascii Interface Module

Manufacturer: Allen Bradley / Rockwell | Catalog # 1769-ASCII | Codale Part # 2583261
$1,313.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
CompactLogix ASCII Interface Module

Technical Information

Amperage
0.425 Amp
Applications
RS-232/485/422
Display Type
Status LEDs
Mounting Type
DIN Rail,Panel Mount
Number of Channels
2
Operating Temperature
0 To 60 degrees C
Power Supply
425 mA @ 5V dc
Standard
C-TICK,CCC,CUL,GOST,KC,UL
Type
ASCII
Voltage
3-25 VDC Supply, 0-3 VDC Input, 0-5.1 VDC Output

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
CompactLogix™

General Product Info

12-Digit UPC
612598314232
Product UPC
61259831423
Weight
0.3700 lb

Dimensions

Depth
3.43 Inch
Height
4.65 Inch
Width
1.38 in
Features
  • Include on-board scaling
  • Provide high accuracy ratings
  • Offer direct connection
  • Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
  • Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
  • Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
  • Include contact output modules
  • Require a chassis
  • Support single network strategy to EtherNet/IP TCP/CIP connection 96
  • Offer analog, thermocouple, and RTD modules
  • Provide dual Ethernet ports for both DLR and linear topologies
  • Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
  • Offers flexible user memory options
  • Includes a built-in RS-232 serial port on every 1769-L3x controller
  • Supports up to 2 axes Kinematics for simple articulated robotics
  • Offer selectable response to a broken input sensor
  • Provides flexibility with DIN rail or panel mounting options
  • Simplify your system architecture with distributed I/O over EtherNet/IP
  • Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
  • Include I/O packet rate of 10,000 pps
  • Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
  • Include 832 points per module
  • Provides integrated safety and integrated motion in a single controller
  • Includes individual point diagnostic status indicators to ease troubleshooting
  • Address reserve, ASCII, Boolean control, and high-speed counter modules available
  • Include high speed input modules
  • Allow control migrations with re-use of existing 1769 I/O
  • Offer input filtering
  • Includes up to a 2-GB secure digital (SD) card for fast program save and restore
  • Provide integrated serial port
  • Include over-range and under-range detection and indication
  • Require SERCOS interface modules for motion
  • Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
  • Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
  • Offer user memory options ranging 2 MB to 3 MB
  • Include autocalibration of inputs
  • Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
  • Support seamless bridging with data control and collection over the same network
  • Ideal for small, to mid-size applications that require low axis motion and I/O point counts
  • Supports integrated safety up to SIL 3, PLe CAT 4
  • Provide optical isolation
  • Prevents incorrect positioning of module with software keying
  • Removes the need for lithium batteries with built-in energy storage
  • Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
  • Offers a smaller form factor for maximized cabinet space
  • Integrates with 1769 Compact I/O™ modules
  • Offers built-in communication ports for EtherNet/IP or ControlNet networks
  • Integrate with 1769 Compact I/O™ modules
  • Delivers standard, safety and motion control for On-Machine™ applications
  • Provides seamless bridging with data control and collection over the same network
  • Does not require a chassis
  • Include ability to direct output device operation during an abnormal condition
  • Available with conformal coating
  • Support SIL 3, PLe integrity (L4xS controllers only)
  • Provides up to 16 axes of Integrated Motion over EtherNet/IP
  • Provide individually configurable channels
  • Offer a variety of AC and DC voltages
