Fluke FLUKE-9040 400 Hz 700 Volt Phase Rotation Indicator

Manufacturer: Fluke Instruments | Catalog # FLUKE-9040 | Codale Part # 2587747
$453.99/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

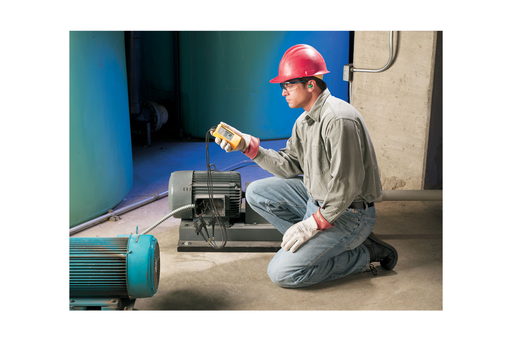

The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.

Technical Information

Applications
Detect the rotary field of three-phase systems
Frequency
15-400 Hz
Operating Temperature
0 To 40 degrees C
Type
Phase Rotation Indicator
Voltage
40-700 Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969291361
Product UPC
09596929136
Weight
200 g

Dimensions

Warranty Length
2 yr
Key Features
  • 3 phase indication
  • Indication of phase rotation
  • Clear LCD display
  • No battery required
Product Overview
  • Phase rotation indicator with high voltage capability for industrial applications
  • The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.

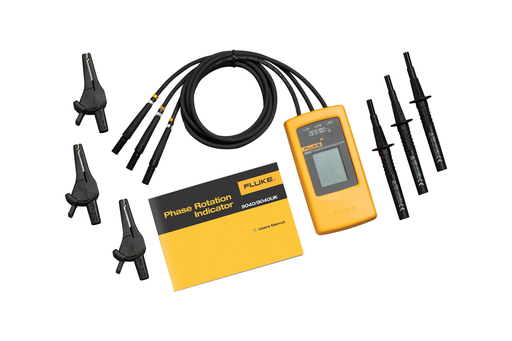

Includes
  • 3 self-retaining test probes (black)
  • alligator clip
  • user manual
