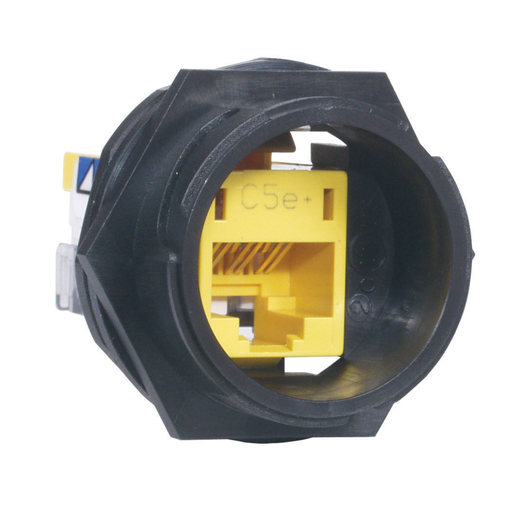

Hubbell HI5E JACK, HI-IMPACT, 5E, UNI, Yellow

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HI5E | Codale Part # 2630596
$34.76/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
HI-IMPACT Connector, Category 5e, Yellow

Technical Information

Applications
IEEE 802.3: 1000 BASE-T (Gigabit Ethernet), 100 BASE-TX, 10 BASE-T, 52/155 Mp/s ATM, ANSI X3.263: 100 Mb/s, IEEE 802.3af for DTE Power (PoE), IEEE 802.3at for PoE Plus, Broadband & Baseband Analog Video
Contact Base Material
Beryllium Copper
IP Rating
IP67
Size
Hi-Impact Opening
Standard
UL
Tc Connection
RJ45, 4P4C, 4P2C, 6P2C, 6P4C, 6P6C, 8P8C, Keyed
Type
Category 6A

Manufacturer Information

Brand
Hubbell Premise Wiring
Sub Brand
HI-Impact

General Product Info

12-Digit UPC
662620846347
Color
Black
Product UPC
66262084634
Weight
0.7000 lb

Dimensions

Height
0.7 Inch
Length
9 Inch
Width
5.000 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Infrastructure - ANSI/TIA/EIA-568-B.2-1 (Cat. 6 and 5e). Supports TIA-1005 Industrial Telecommunications Infrastructure
  • Environmental - Corrosion - Resistant to most common chemicals, oils and cleaning agents
  • Environmental - HI-Impact Housing - UV resistant
  • Environmental - Ingress Protection - NEMA TYPE 4X (connectors), IP67 and IP66 (dust/water). IP55 (plates)
  • Environmental - Temperature Range - TIA/EIA-568-B.2 -25°C to 70°C
  • Mechanical - Acceleration - 5g (operational)
  • Mechanical - Frequency Range - 10-500Hz
  • Mechanical - Mating Cycles - 750 minimum
Industry Standard(s)
  • ANSI/TIA/EIA-568-C.2 Category 5E Component
  • ISO 11801/60603-7-41 Category 5E Component
Features
  • O-Rings for moisture protection
  • Housing made from high impact polymer
  • IP67 Protected Connection
  • Category 6 and 5e component connectors
  • Standard Hubbell Keystone Latching System
