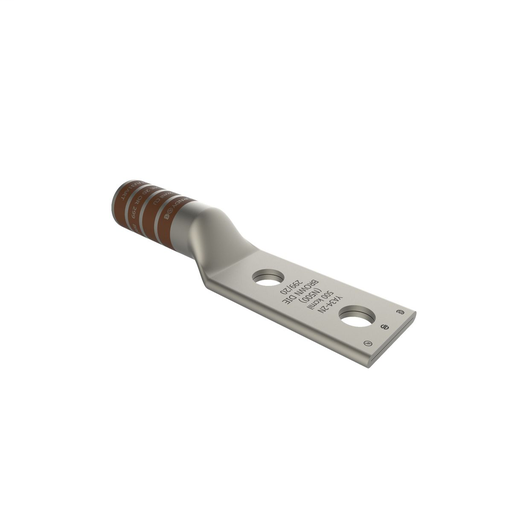

Image thumbnail 2
Image thumbnail 3
Email

Burndy YA342N 500 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Brown Color Code, 20 or 299 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YA342N | Codale Part # 2636267
$60.86/ea
ea
Log in or register to view your price, purchase history, and more!
757 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet
500 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Brown Color Code, 20 or 299 Die Index.

Technical Information

Applications
For Code Conductor
Barrel Type
Long, Straight
Cable Size
500 KCMIL Stranded
Color Coding
Brown
Conductor Material
Copper
Conductor Size
500 kcmil
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin
Stud Size
1/2 in
Temperature Rating
90 degrees C
Type
YA-2N
Voltage
600-35000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Hylug™

General Product Info

12-Digit UPC
781810506059
Color
Brown
Finish
Tin Plated
Product UPC
78181050605
Used With
Code Conductor
Weight
0.6300 lb

Dimensions

Height
1.05 Inch
Hole Size
14 mm
Length
6.06 Inch
Overall Length
6.06 in
Width
1.55 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Die Index: 20, Temperature Rating: 90 DEG C, Wire Strip Length: 2-1/2 IN, Finish: Electro-Tin Plated, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W34VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W34VT, W34RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U34RT, U31ART Die, (4), Y46 Tool, U34RT, U31ART Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4)
