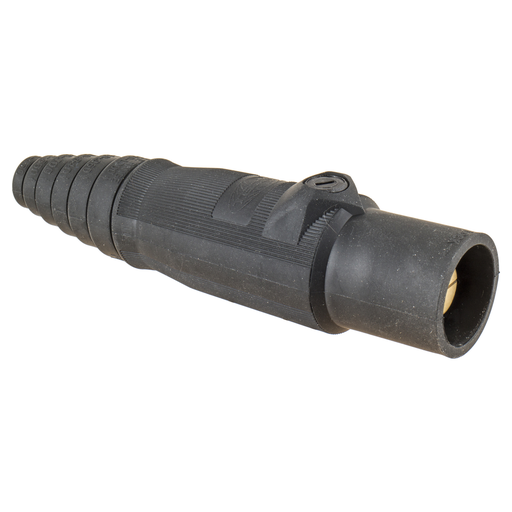

Product image for Hubbell HBL400MBK 400 Amp 600 VAC 250 VDC 1-Pole Black Male Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Email

Hubbell HBL400MBK 400 Amp 600 VAC 250 VDC 1-Pole Black Male Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL400MBK | Codale Part # 2638743
$137.32/ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 400A 600V AC/DC, Single Conductor, Double Set Screws, Black

Technical Information

Amperage
400 Amp
Applications
High Ampacity Connections
Conductor Size
2/0-4/0 AWG
Connection Type
Pressure Screw Terminal
Cord Type
Listed SC/PPC Type
Current
400 Amp
Material
Composite
Number of Conductors
1
Number of Poles
1 Pole
Number of Wires
1 Wire
Size
Standard Sized
Standard
12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Style
Male
Tc Connection
Pressure Plate
Type
Standard, 1-Pole
Voltage
600 VAC/250 VDC
Wattage
240000 Watt
Wire Size
00-0000 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Single Pin

General Product Info

12-Digit UPC
783585112268
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Series 16
Product UPC
78358511226
Weight
0.7300 lb

Dimensions

Height
1.8 Inch
Length
6.8 Inch
Width
4.960 in

Certifications and Compliance

Country of Origin
China
Features
  • Insulgrip® Style Housing for Superior Gripping
  • Non-Conductive Retaining Screw locks contacts in place
  • Large Raised Alignment Arrow aids in the mating of devices
