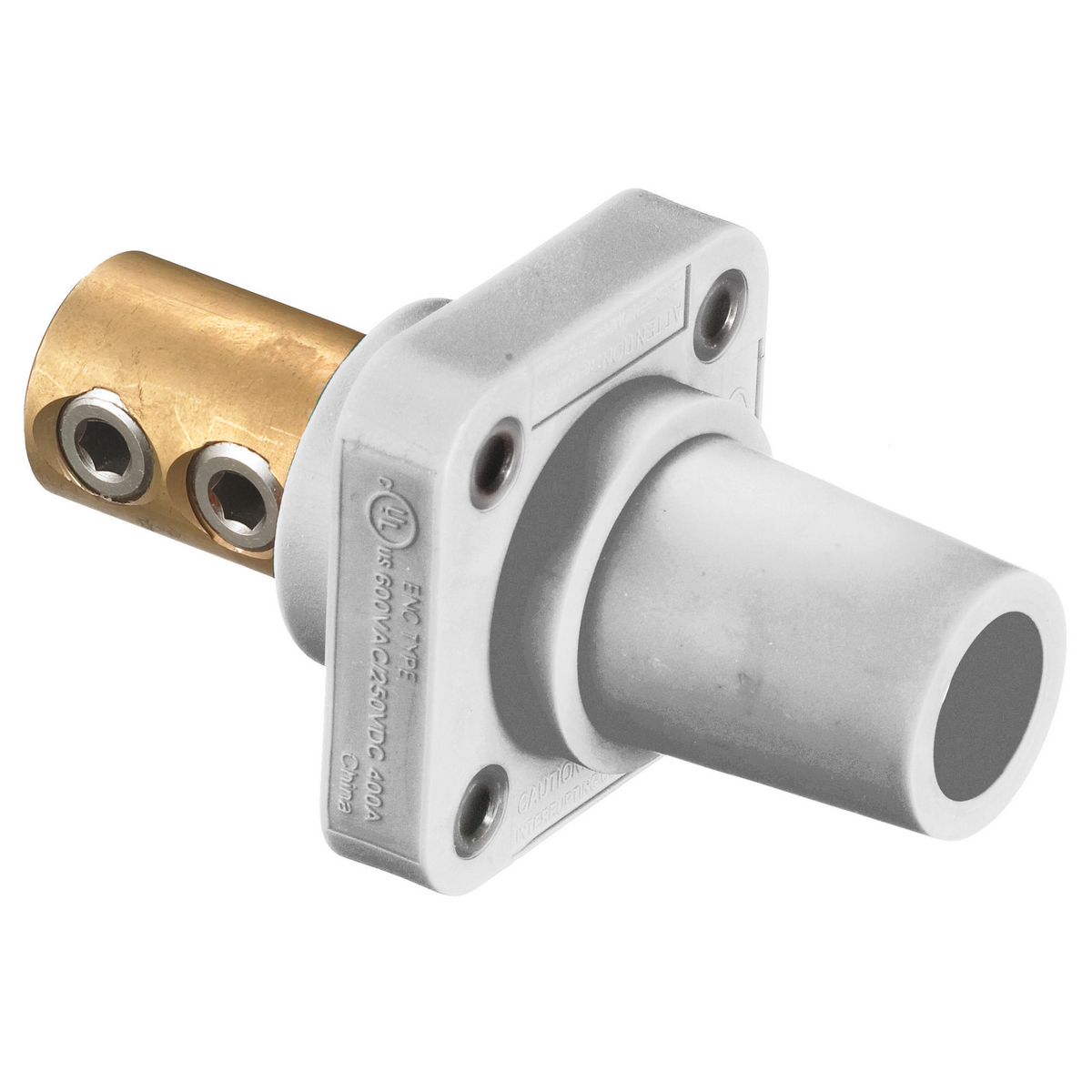

Product image for Hubbell HBLFRW 400 Amp 1-Pole White Double Set Screw FeMale Cam Type Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBLFRW 400 Amp 1-Pole White Double Set Screw FeMale Cam Type Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLFRW | Codale Part # 2638789
$86.70/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female Receptacle, 300/400A, 600V AC/DC, Single Conductor, Set Screw, White

Technical Information

Amperage
400 Amp
Applications
High Ampacity Connections
Conductor Size
4-4/0 AWG
Connection Type
Double Set Screw
Current
400 Amp
Material
Elastomer
Mounting Type
Threaded Through-Hole
Number of Phases
1 Phase
Number of Poles
1 Pole
Number of Wires
1 Wire
Size
Standard Sized
Standard
12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Style
Double Set Screw Female
Tc Connection
Double Set Screw
Type
Panel Mount
Voltage
250 VDC/600 VAC
Wattage
240000 Watt
Wire Size
4-0000 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Single Pin

General Product Info

12-Digit UPC
783585112732
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Series 16
Product UPC
78358511273
Weight
0.7000 lb

Dimensions

Height
2.1 Inch
Length
5.8 Inch
Width
2.180 in

Certifications and Compliance

Country of Origin
China
Features
  • Industrial Grade
  • Female Receptacle
  • 300/400A
  • Standard
