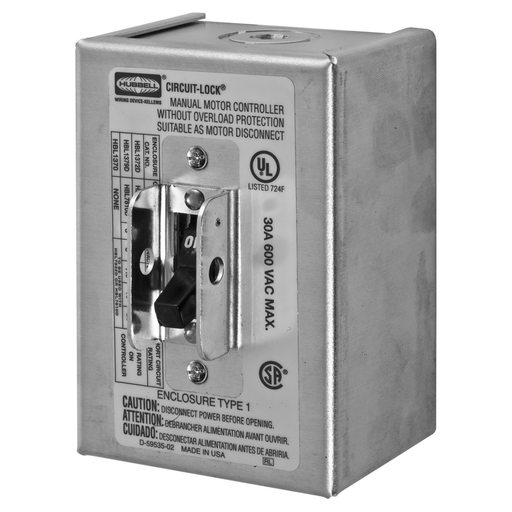

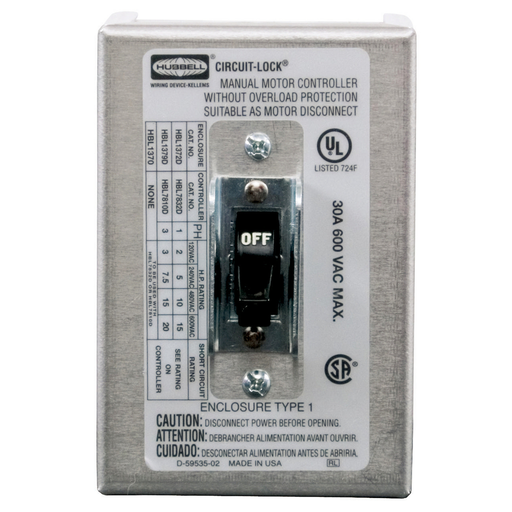

Hubbell HBL1379D 30 Amp 600 VAC 3-Pole NEMA 1 Aluminum Disconnect Switch Enclosure

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1379D | Codale Part # 2639021
$239.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Three Pole, 30A 600V AC

Technical Information

Amperage
30 Amp
Applications
For Motor Starting Without Overload Protection
Connection Type
Pressure Screw Terminal
Current
30 Amp
Enclosure Rating
1
Enclosure Type
NEMA 1
Horsepower
15 hp
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Power Rating
18,000 W
Size
Standard Sized Product
Standard
CSA-C22.2 No.14 Industrial Control File LR-46186,Industrial Control File #E70402,UL 508
Style
Standard Duty
Tc Connection
Pressure Screw Terminals
Temperature Rating
Minimum Continuous -40 Deg C without Impact
Type
Standard
Voltage
600 VAC
Wattage
18000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Manual Motor Controllers

General Product Info

12-Digit UPC
783585202617
Color
Aluminum
Product Series
Non-Fused
Product UPC
78358520261
Weight
1.05 lb

Dimensions

Height
3.15 Inch
Length
4.52 Inch
Width
3.168 in

Certifications and Compliance

Country of Origin
USA
Features
  • Optional Side Guard for close wall applications
  • Switch can be locked in the off position
  • Thermoset body provides resistance to electrical arc tracking
  • Standard Product
