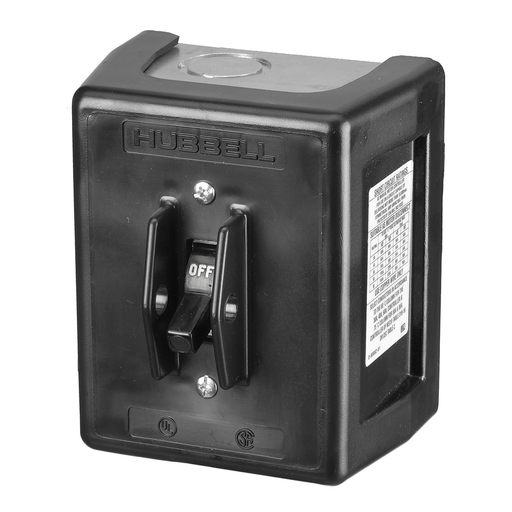

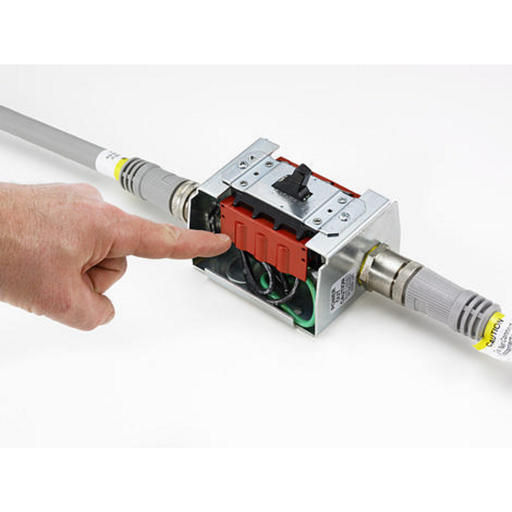

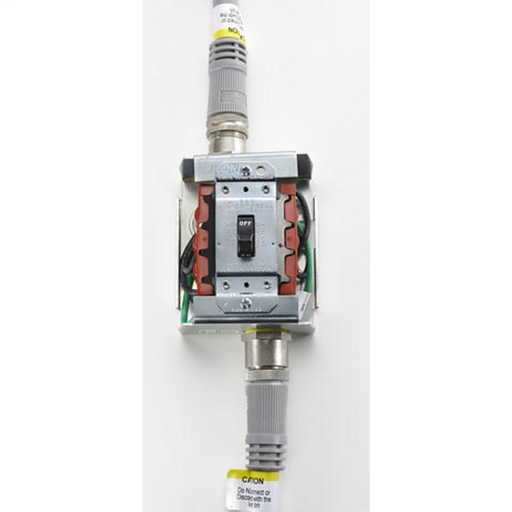

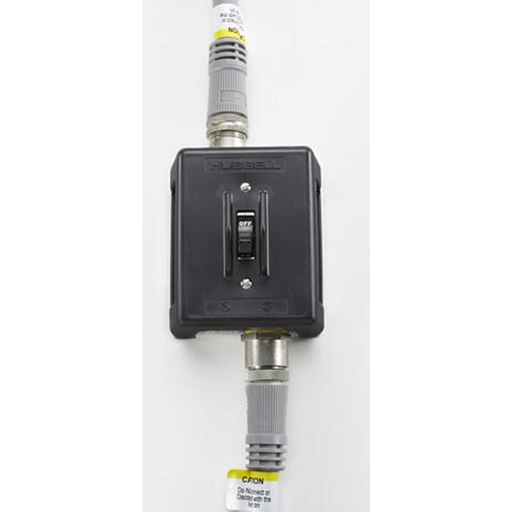

Hubbell HBL1389D 30A 600V Circuit-Lock Disconnect Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1389D | Codale Part # 2639022
$217.18/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Black, In NEMA 1 Non-Metallic Enclosure

Technical Information

Amperage
30 Amp
Applications
For Motor Starting Without Overload Protection
Conductor Size
10 AWG
Connection Type
Pressure Screw Terminal
Current
30 Amp
Enclosure Rating
1
Enclosure Type
NEMA 1
Horsepower
20 hp
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Power Rating
18,000 W
Size
Standard Sized Product
Standard
CSA-C22.2 No.14 Industrial Control File LR-46186,Industrial Control File #E70402,UL 508
Tc Connection
Pressure Screw Terminals
Temperature Rating
Minimum Continuous -40 Deg C without Impact
Type
Standard
Voltage
600 VAC
Wattage
18000 Watt
Wire Size
10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Manual Motor Controllers

General Product Info

12-Digit UPC
783585202624
Color
Black
Housing Material
Plastic
Product Series
Fused,MotorQuick/LINKOSITY,Non
Product UPC
78358520262
Weight
1.6 lb

Dimensions

Height
3.4 Inch
Length
4.52 Inch
Width
3.97 in

Certifications and Compliance

Country of Origin
USA
Features
  • Optional Side Guard for close wall applications
  • Switch can be locked in the off position
  • Thermoset body provides resistance to electrical arc tracking
Industry Standard(s)
  • CSA-C22.2 No.14 Industrial Control File LR-46186
  • UL 508, Industrial Control File #E70402
Series
  • Non-Fused
  • MotorQuick/LINKOSITY
Style
  • Replacement Switches
  • Standard Duty
Performance
  • Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute
  • Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load
  • Electrical - Max. Working Voltage - 600V AC RMS
  • Environmental - Flammability - UL94HB/VO
  • Environmental - Operating Temperature - Max. 75°C
  • Min. -40°C continuous w/o impact
  • Mechanical - Mechanical Life - Min. 10,000 minimum cycles
  • Mechanical - Switch Rating - 25 inch pounds
  • Mechanical - Terminal Accommodations - #10 AWG Max
  • Mechanical - Terminal Torque - 20 inch pounds
  • Mechanical - Wire Type - Solid and stranded copper wire only
Type
  • Disconnect Switches
  • Accessories For LINKOSITY®
